Motorsports "POS" Mustang Cobra Restoration Journal|
|#66: April 18th, 2012 - Bodywork on the drivers-side rockers and quarter panel...|
|Both the drivers and passenger-side rocker panels have damage from improper jacking.|
The drivers-side is limited to a collapsed area just behind the trailing edge of the front fender. The passenger-side damage is more extensive. There is about a 3ft section directly under the door that is damaged.
Repairing the rocker panels was also one of the reasons why the quotes for body and paint on the car were so high. With the drivers-side rocker needed less repair, I decided to tackle that job first.

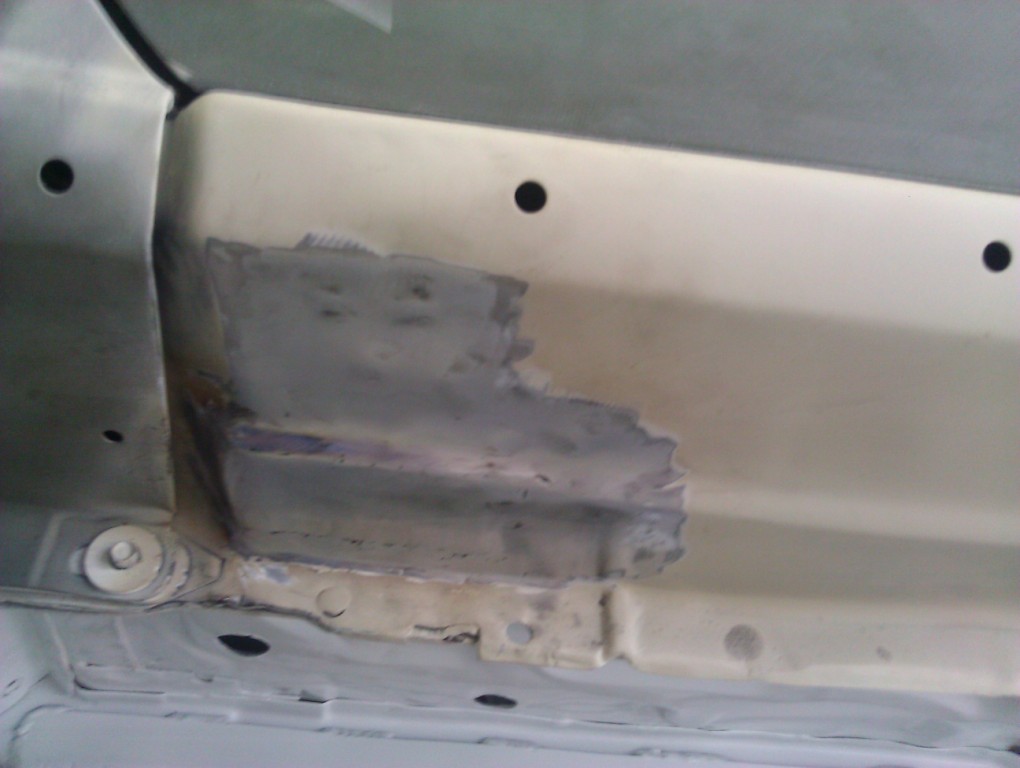

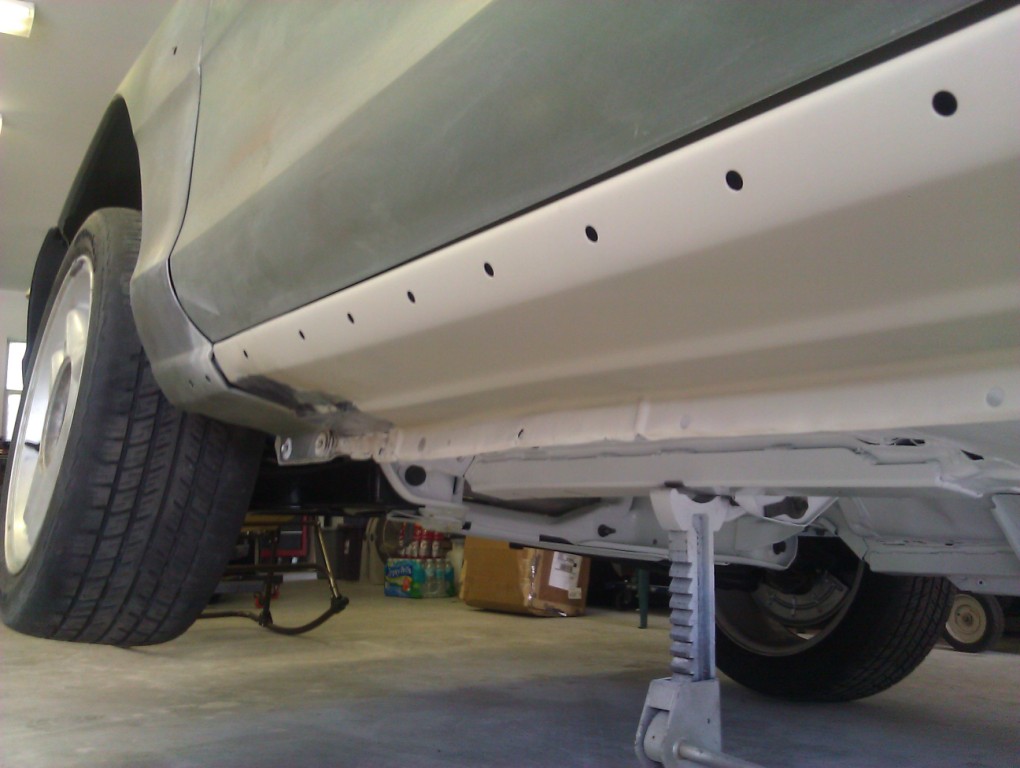

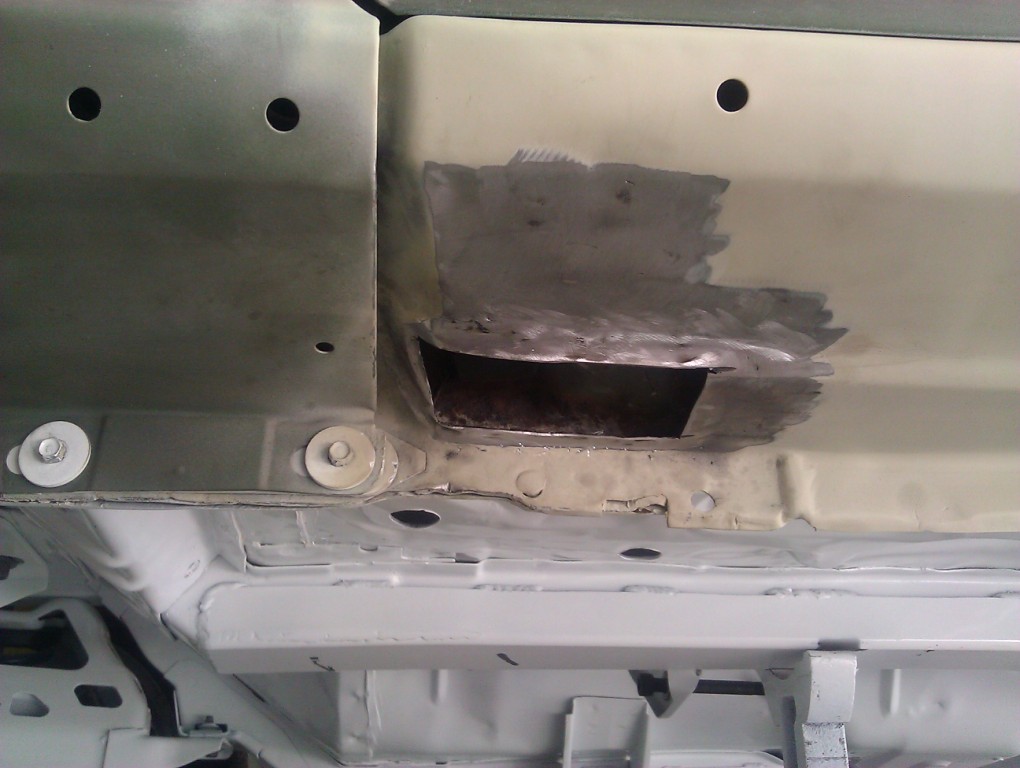

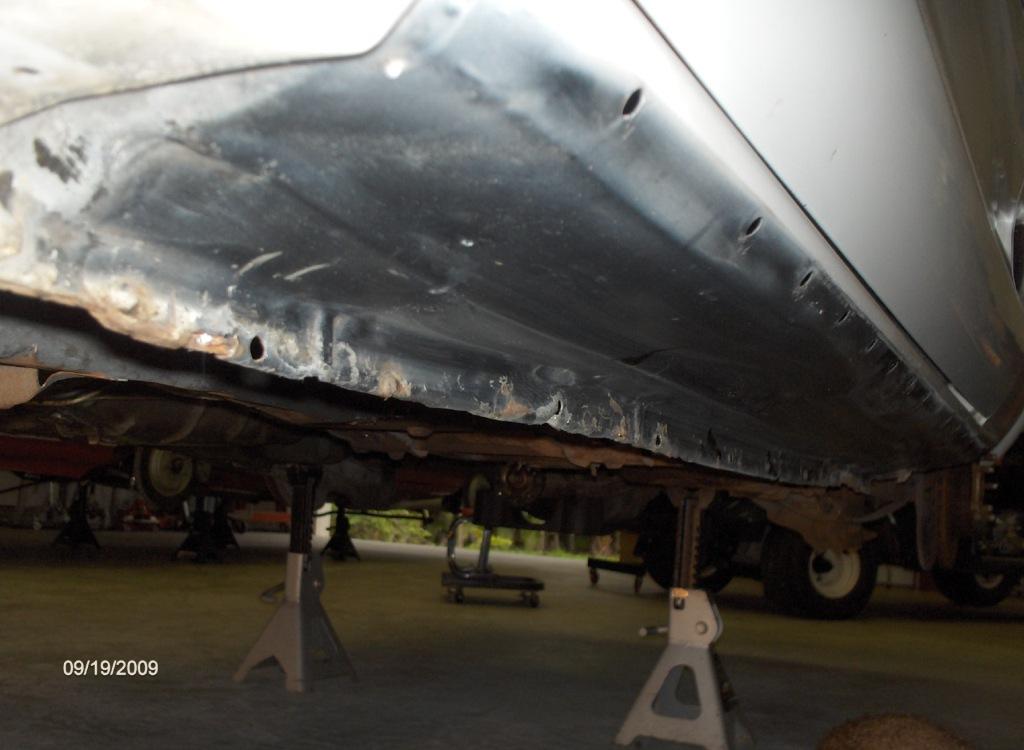

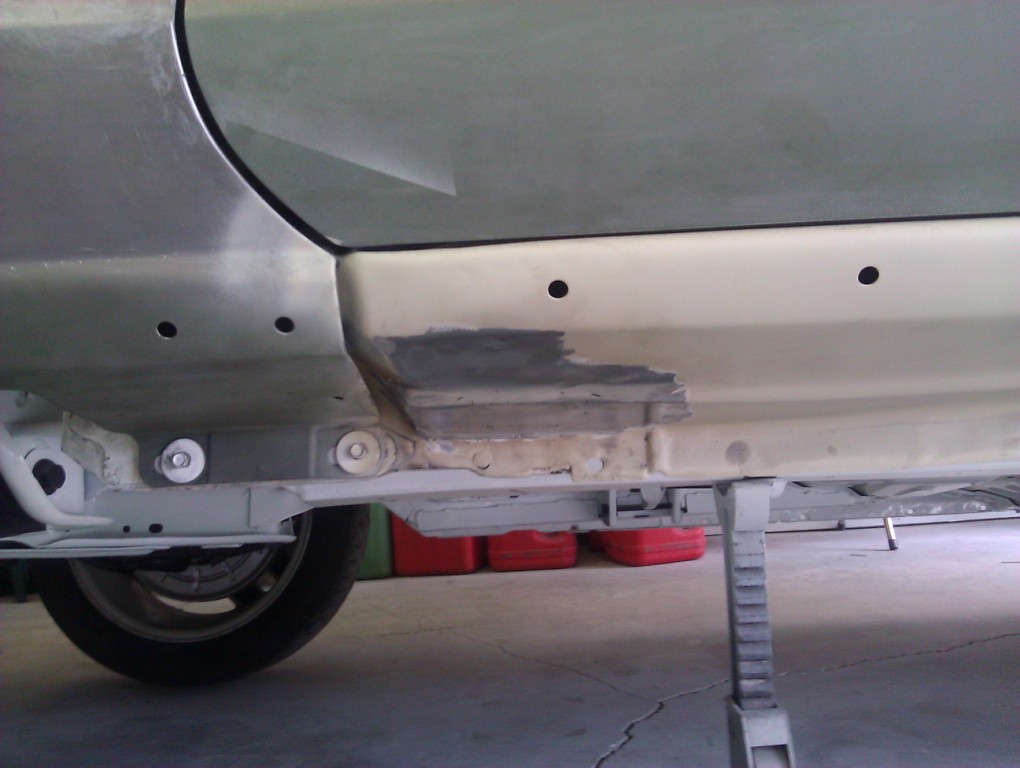

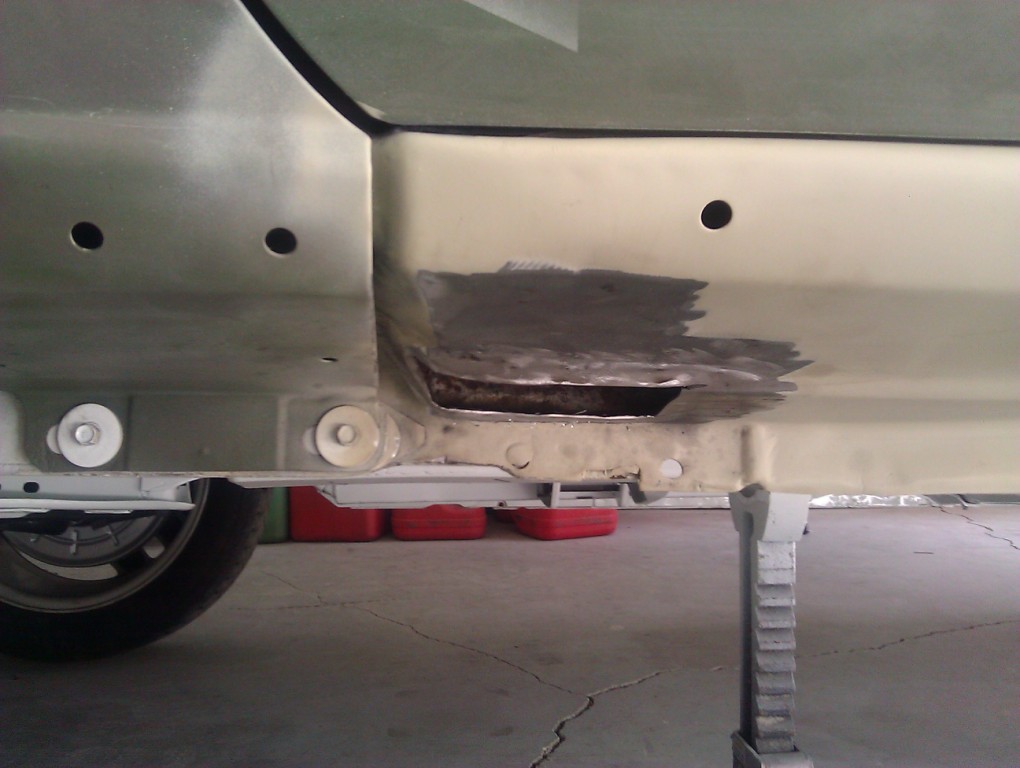

Here are a couple of pictures of the area with the damage.

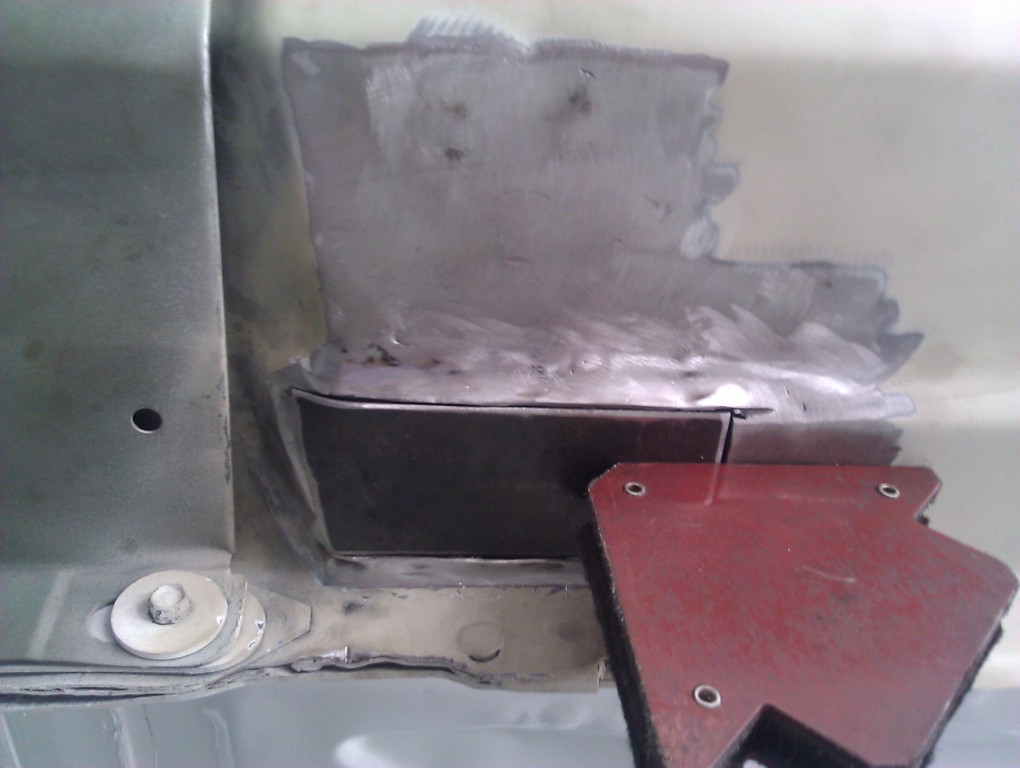

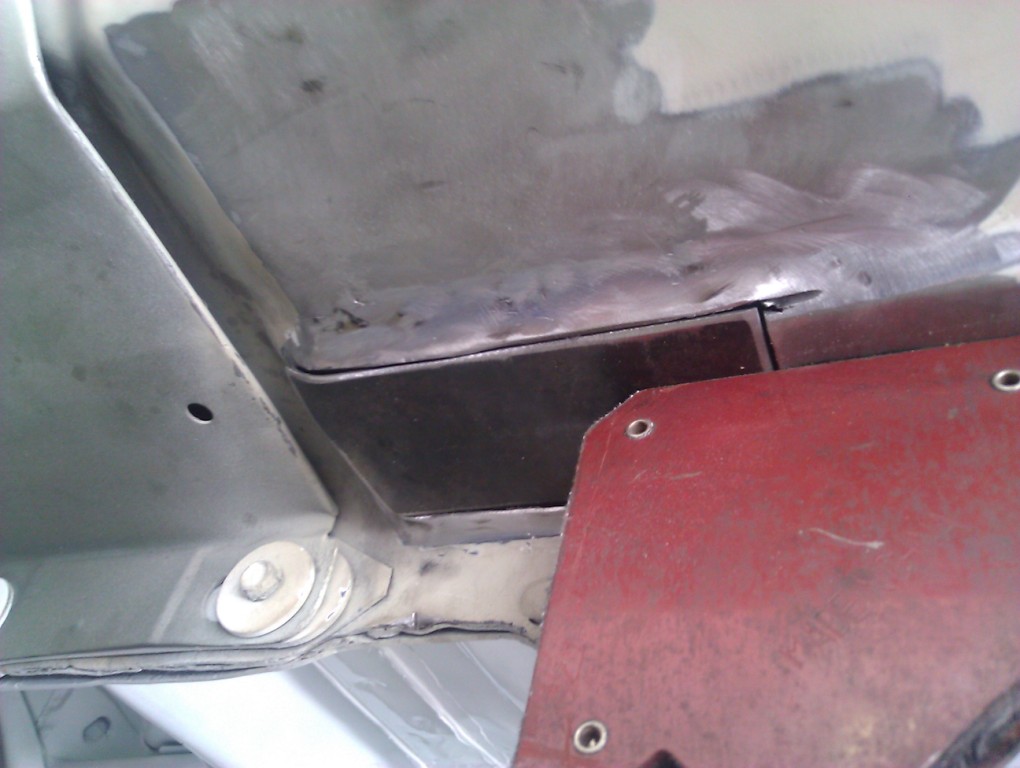

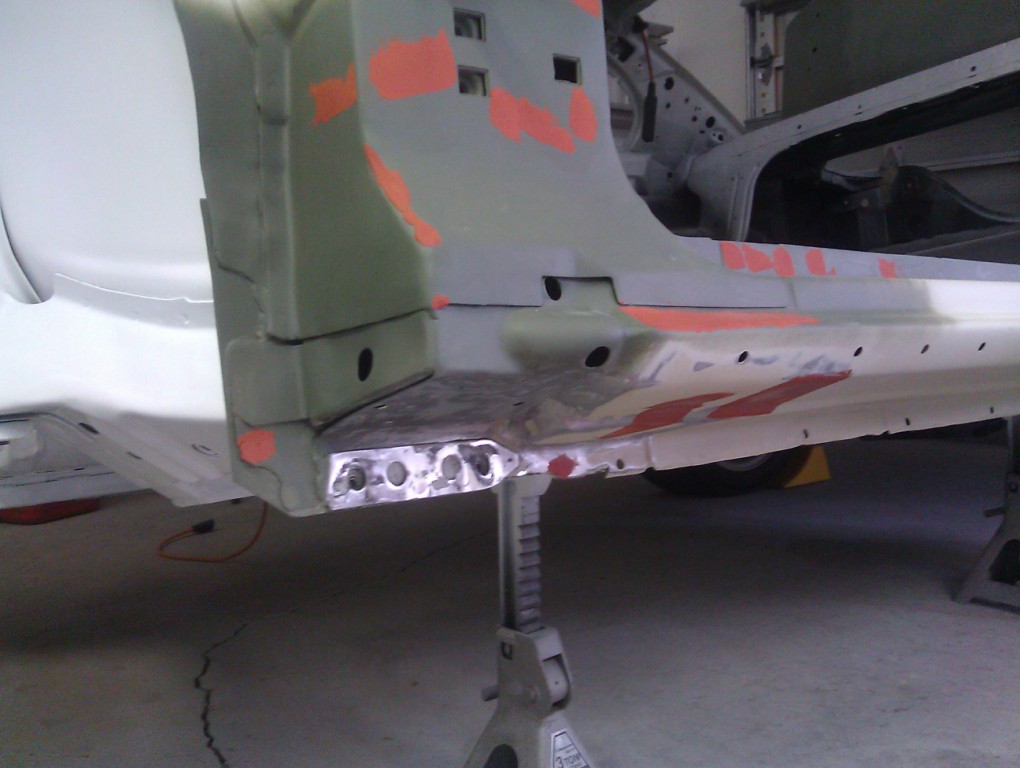

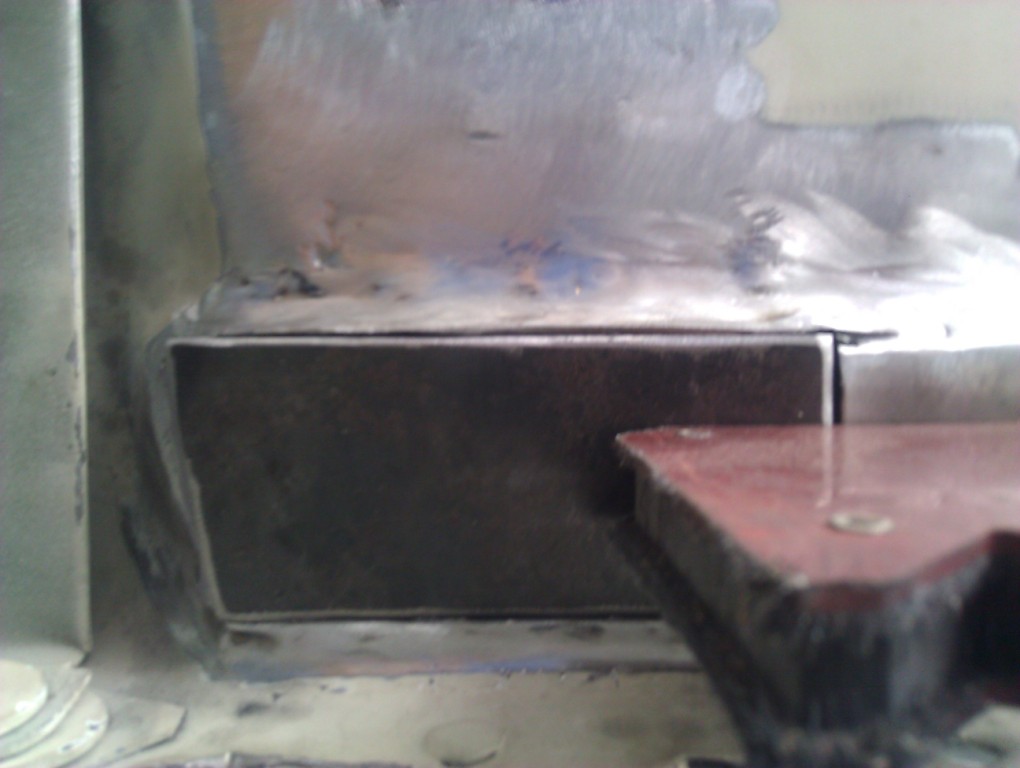

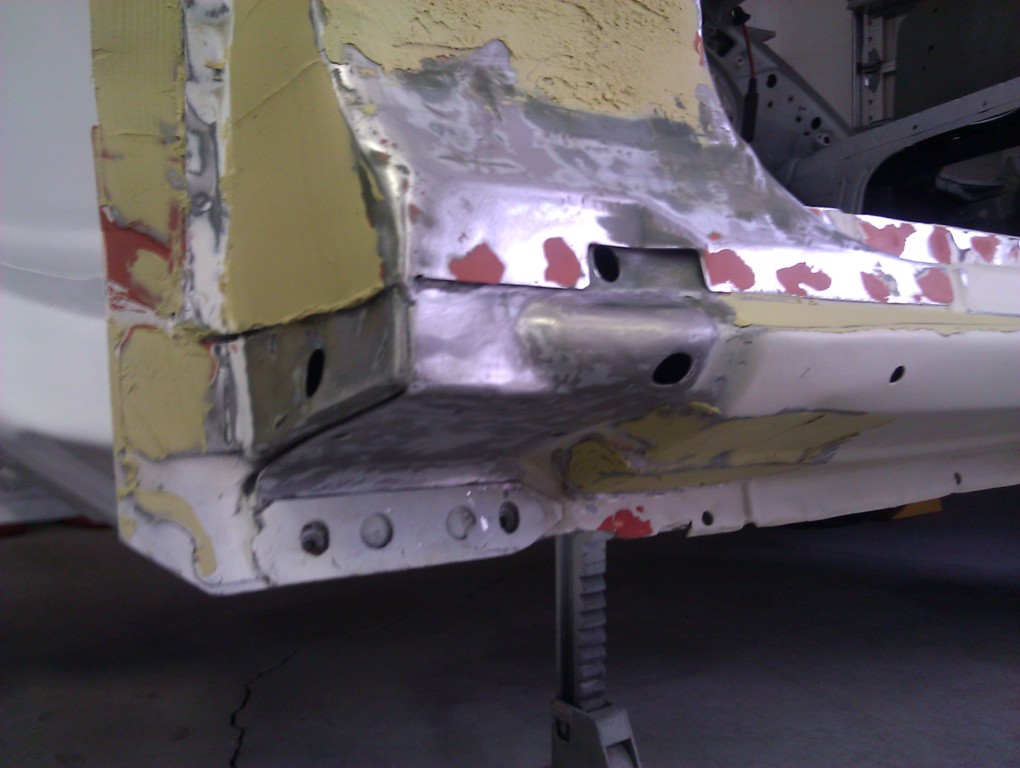

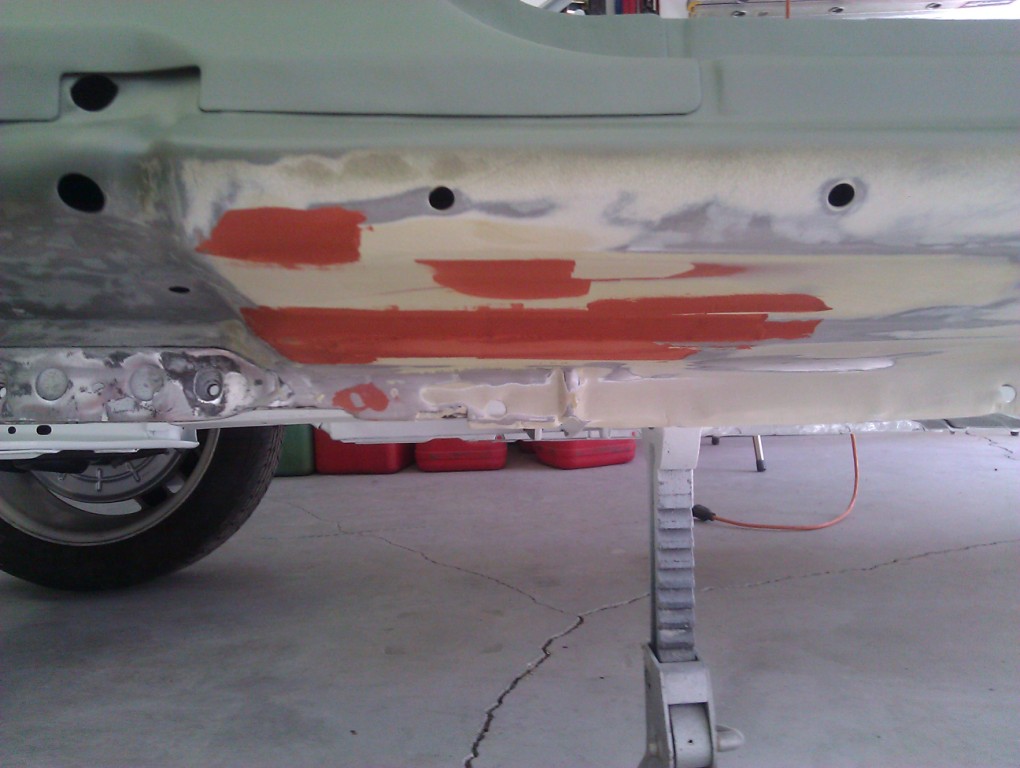

began by cutting-out the worst of the damaged area. Then using some
sheet steel, I fabricated a replacement piece and welded it into place.|

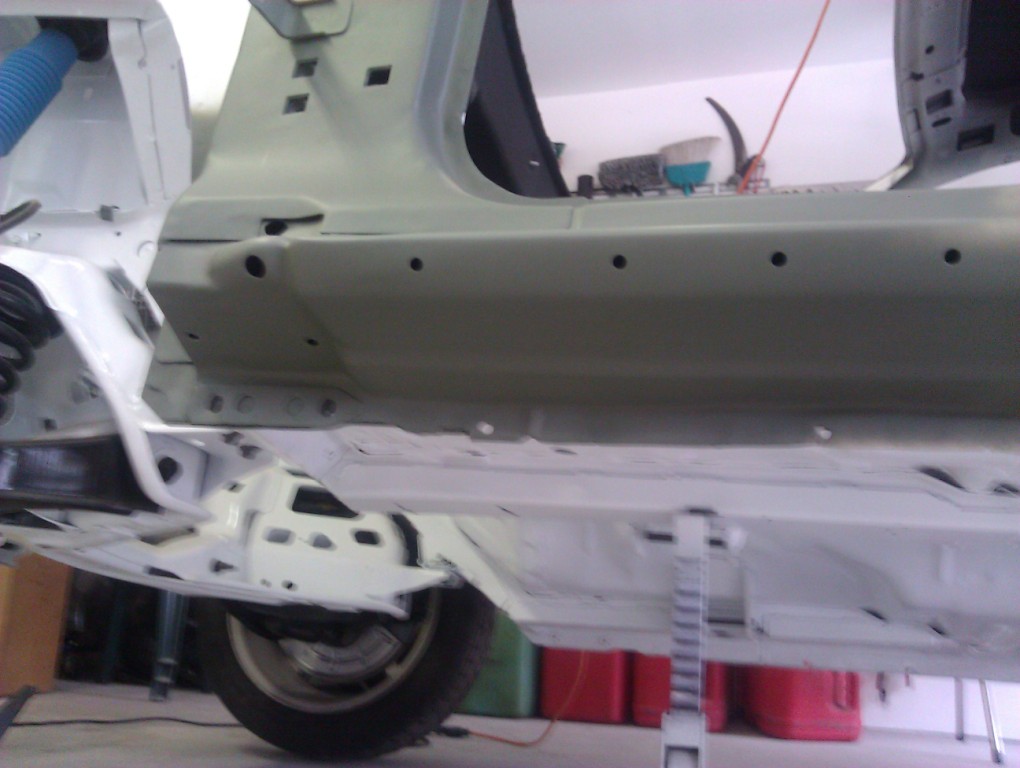

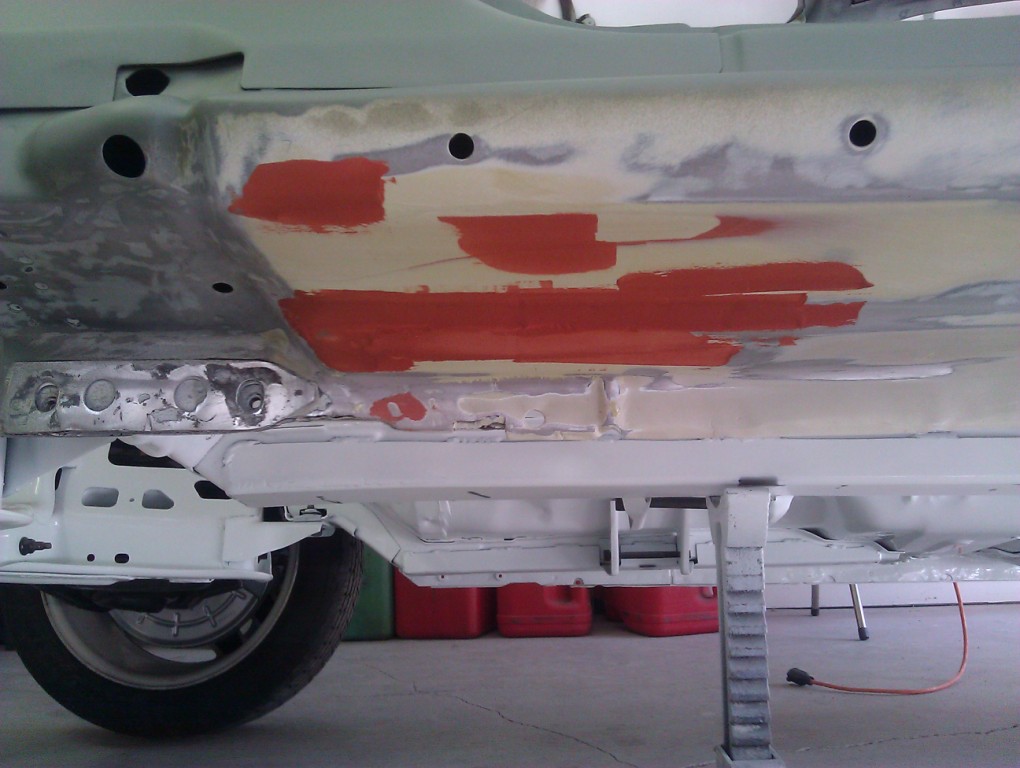

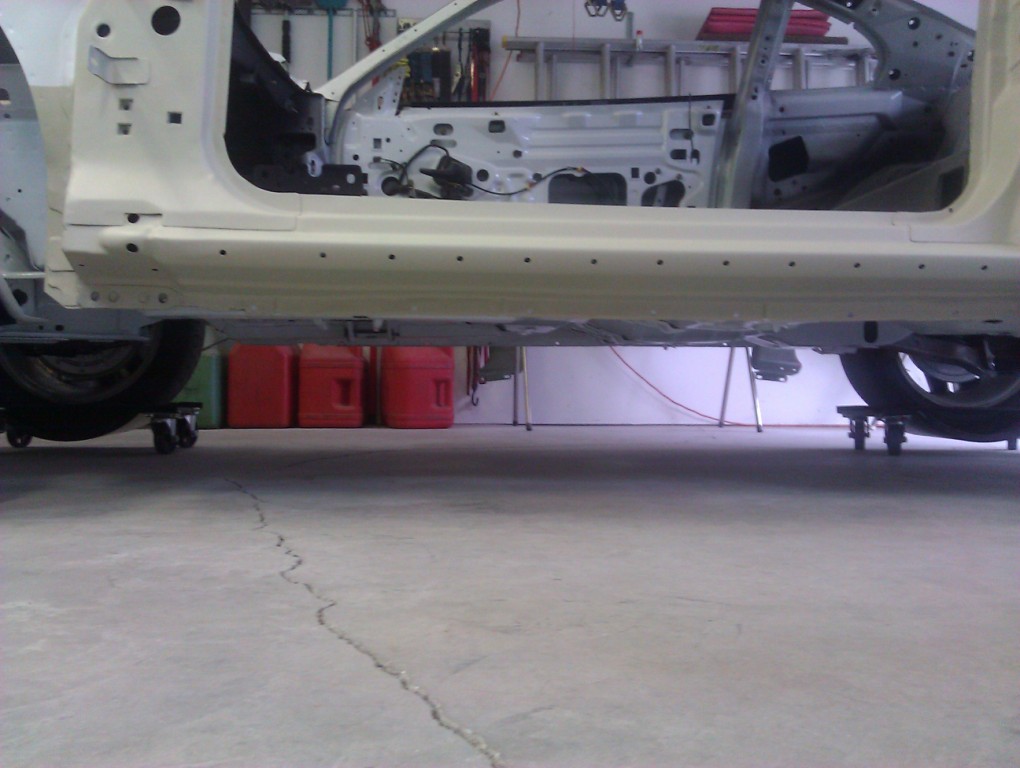

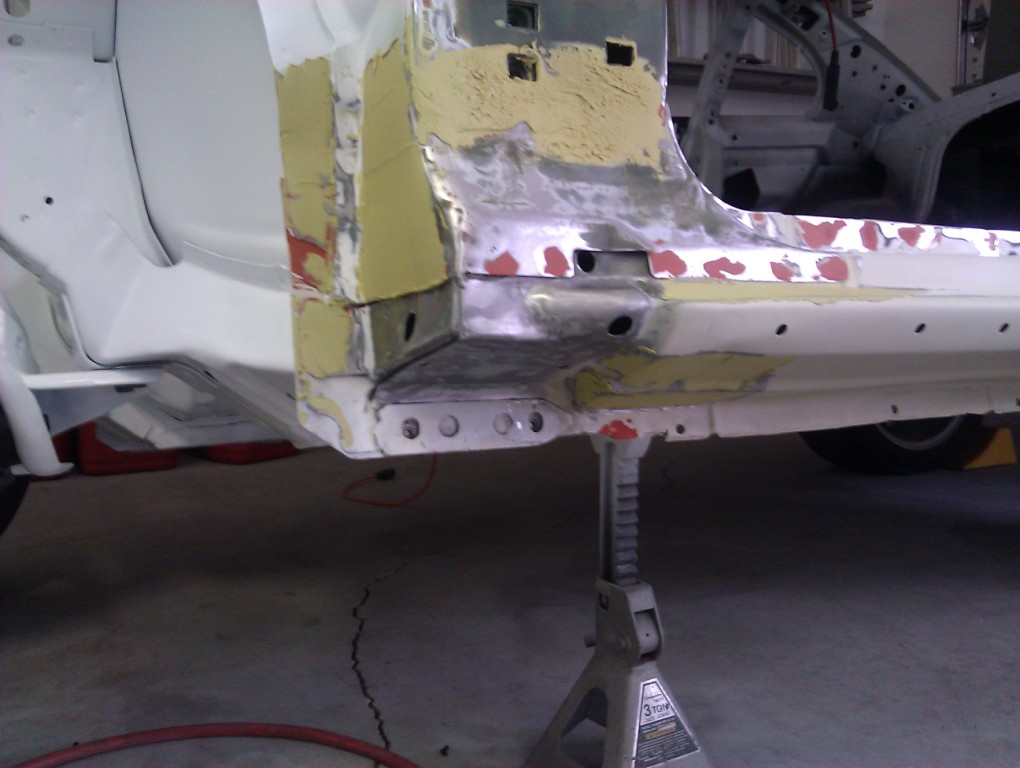

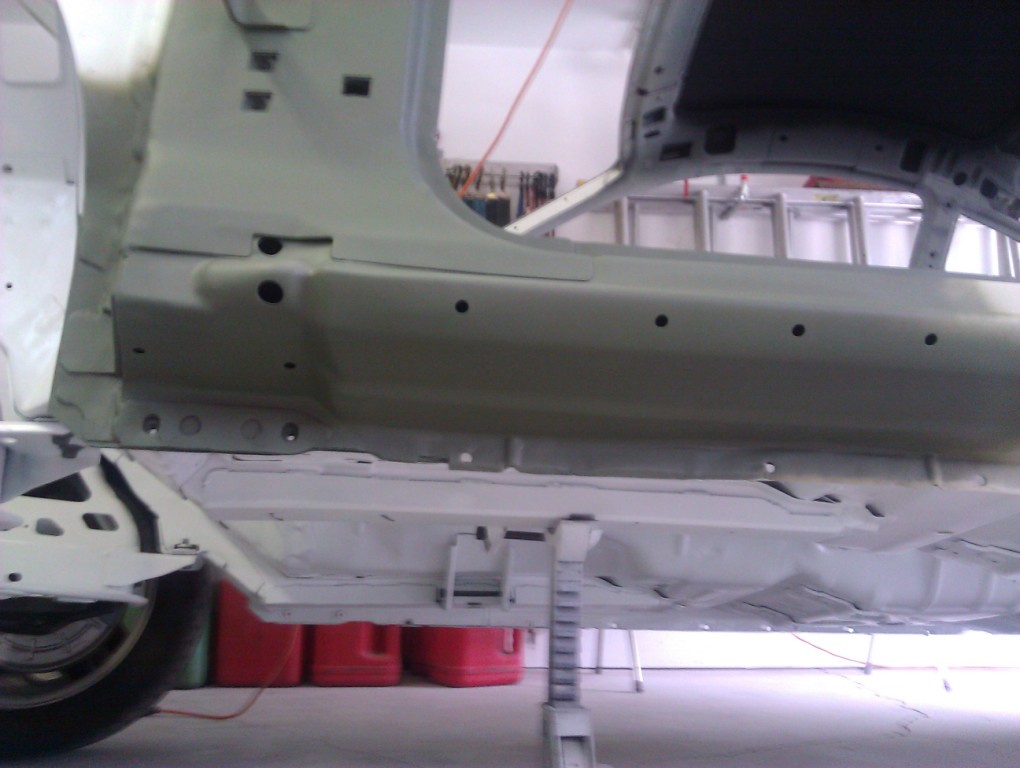

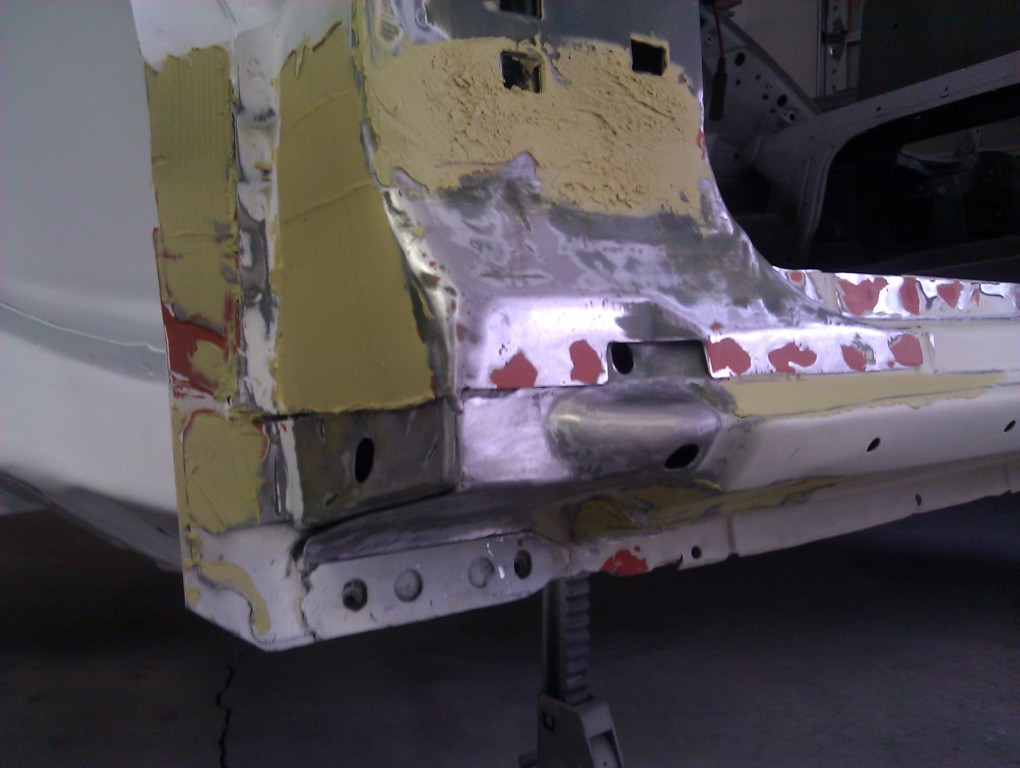

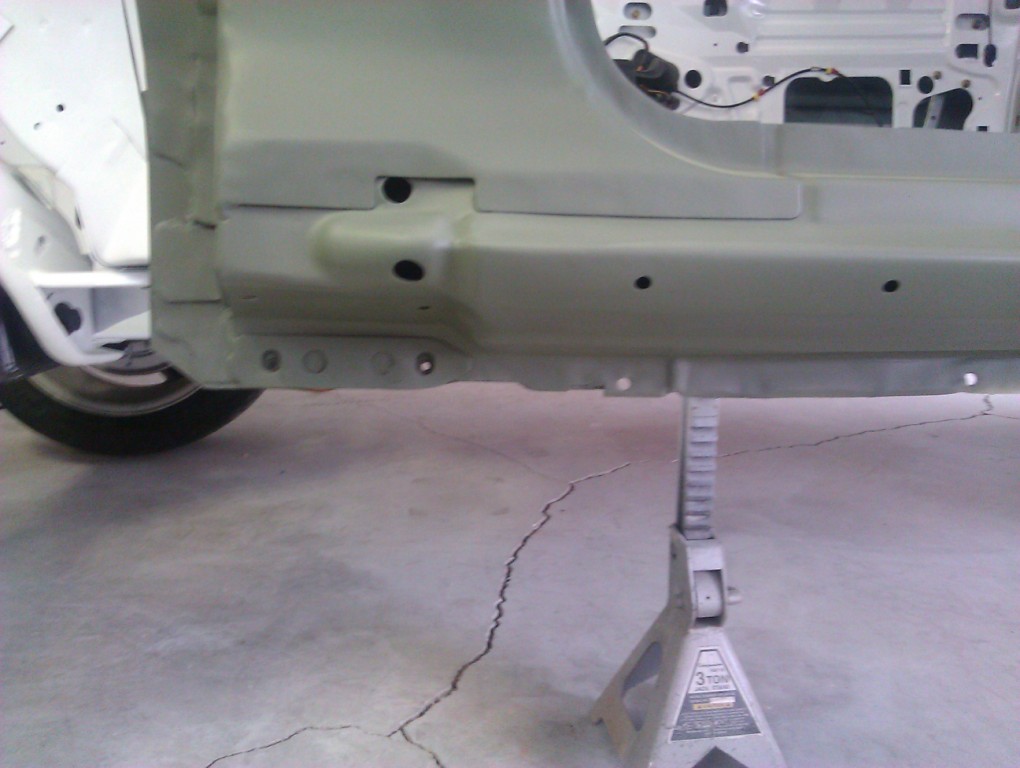

After that, it was just filler, sanding, spot-putty, sanding and primer.

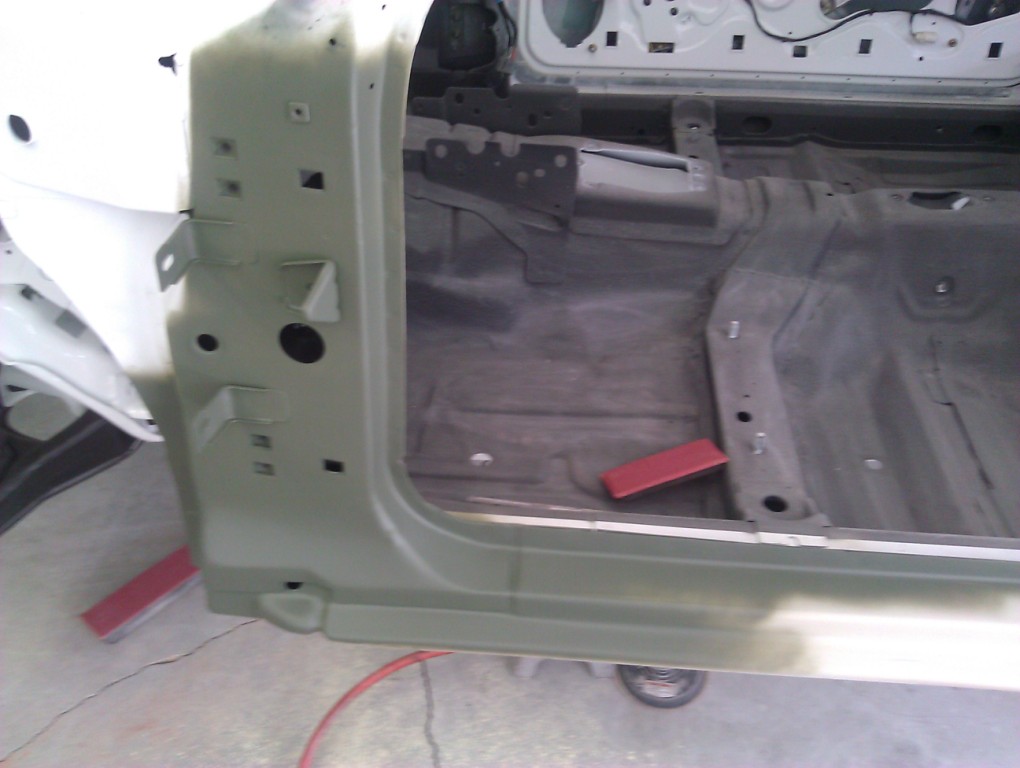

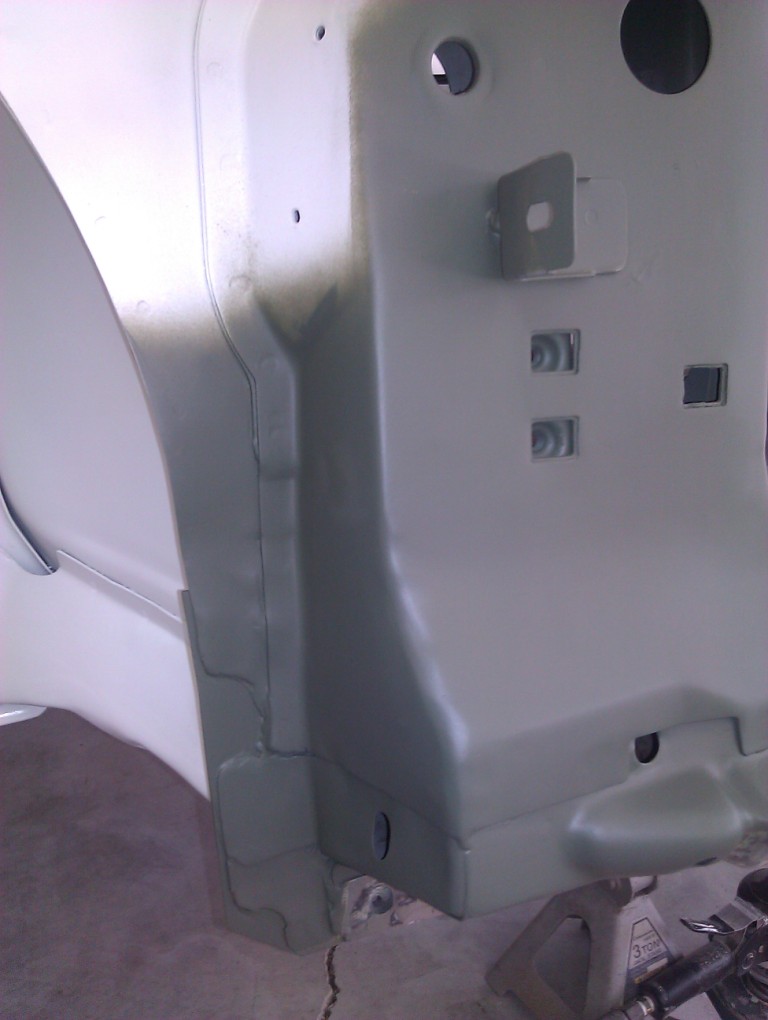

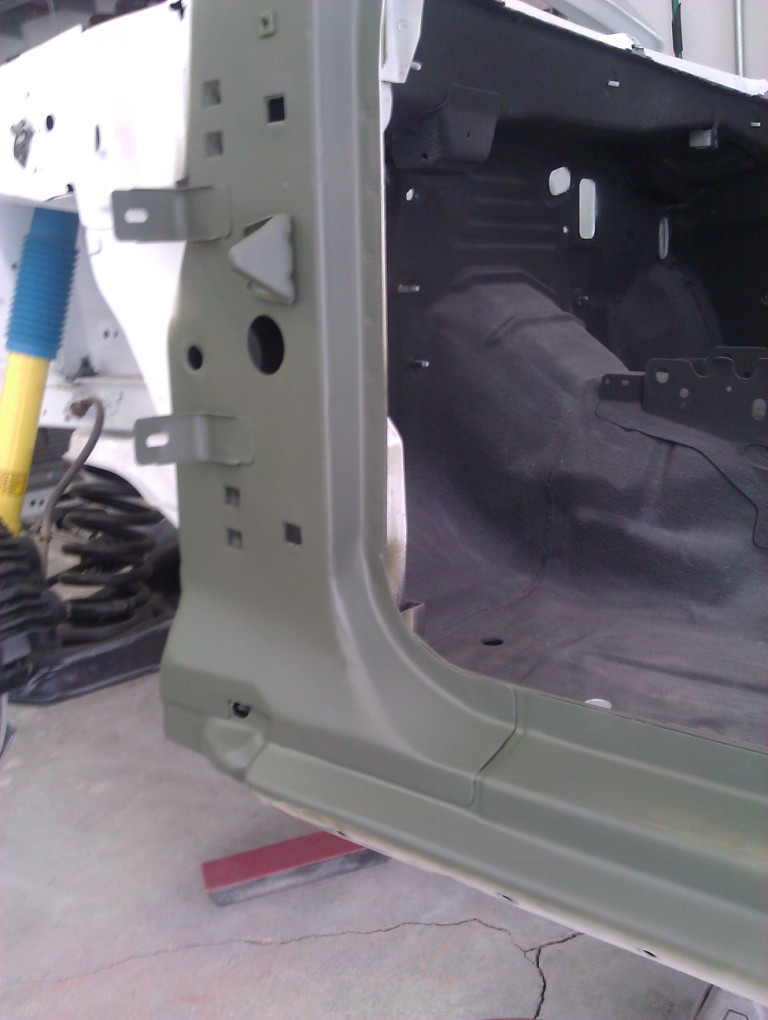

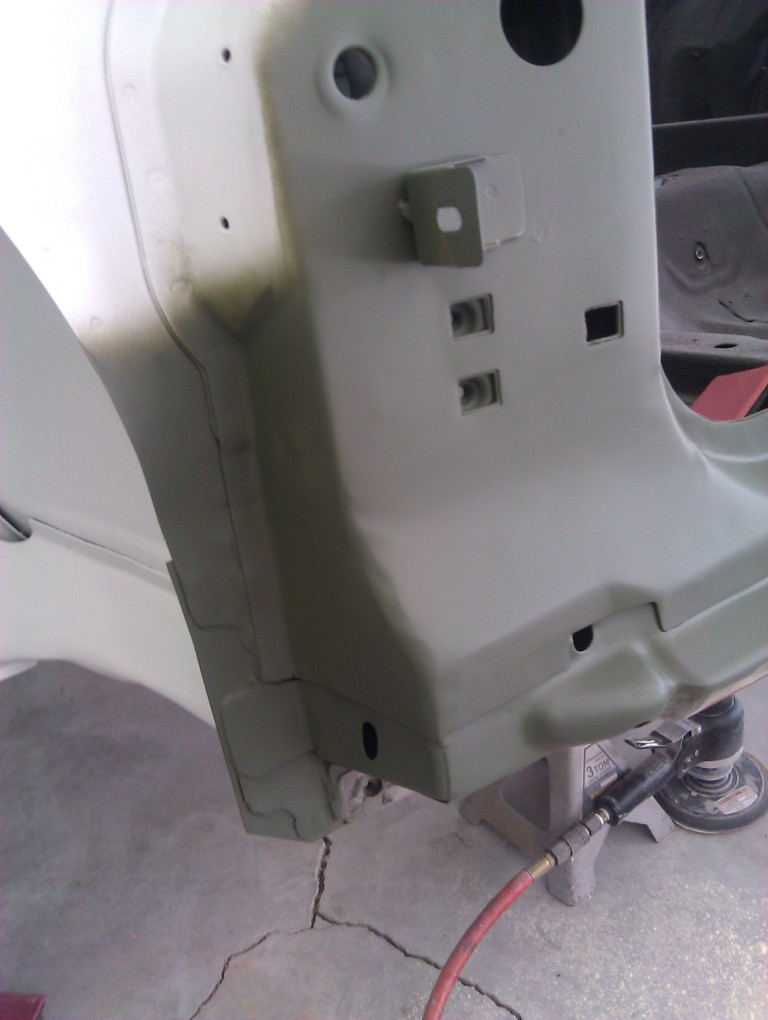

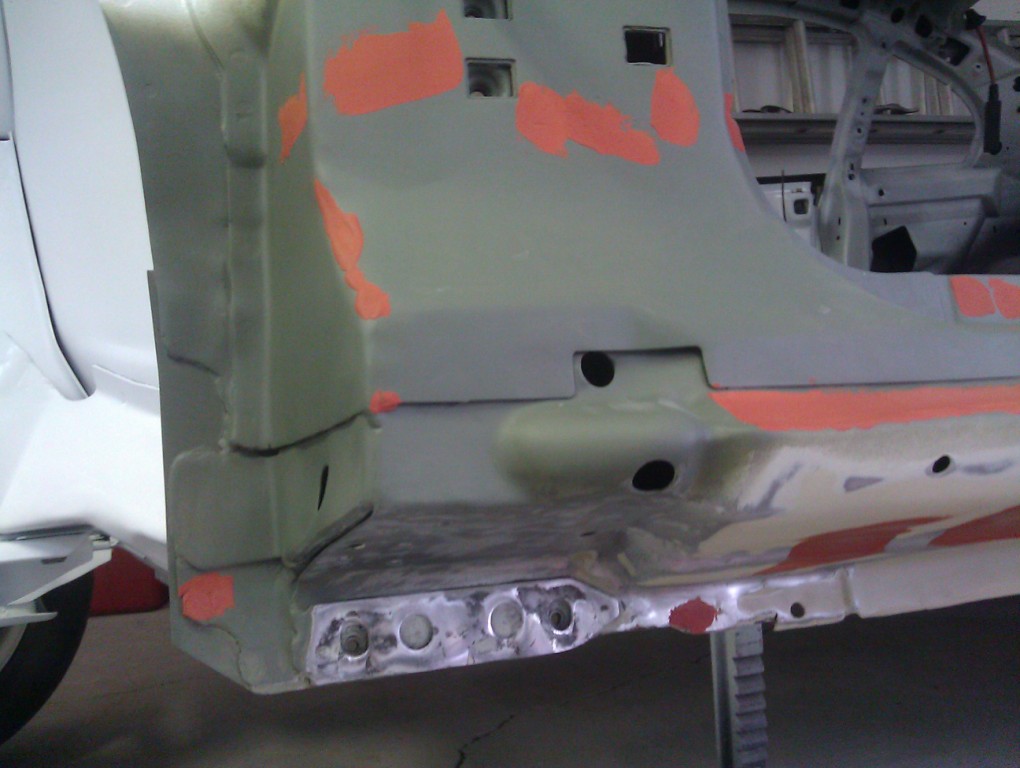

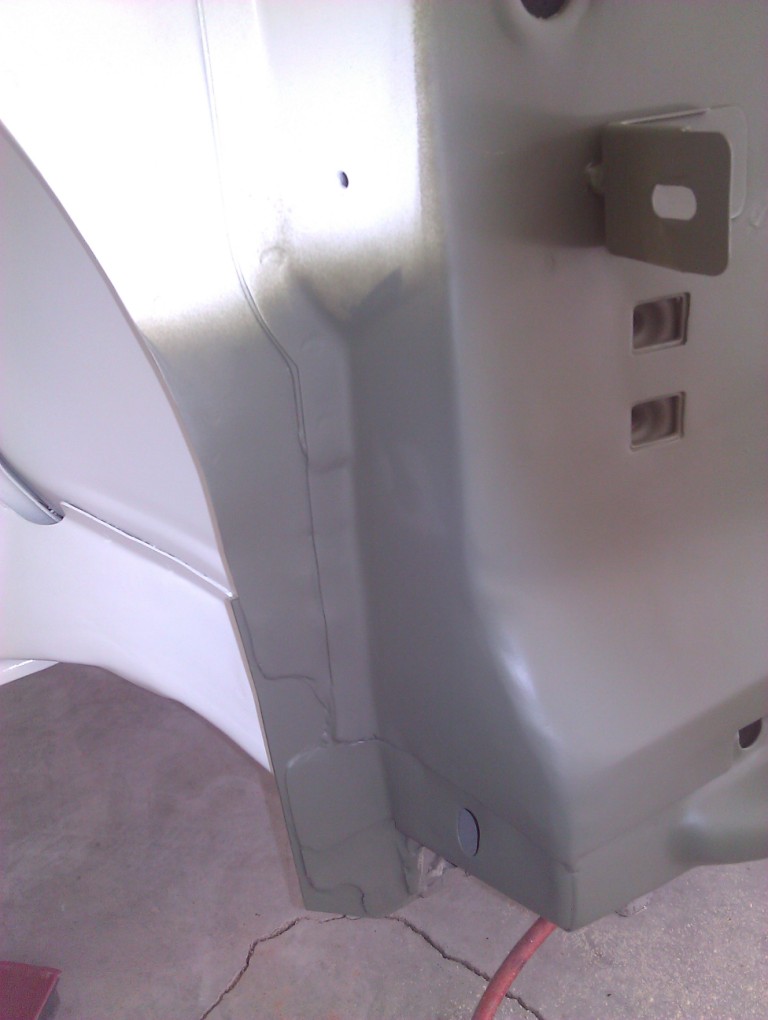

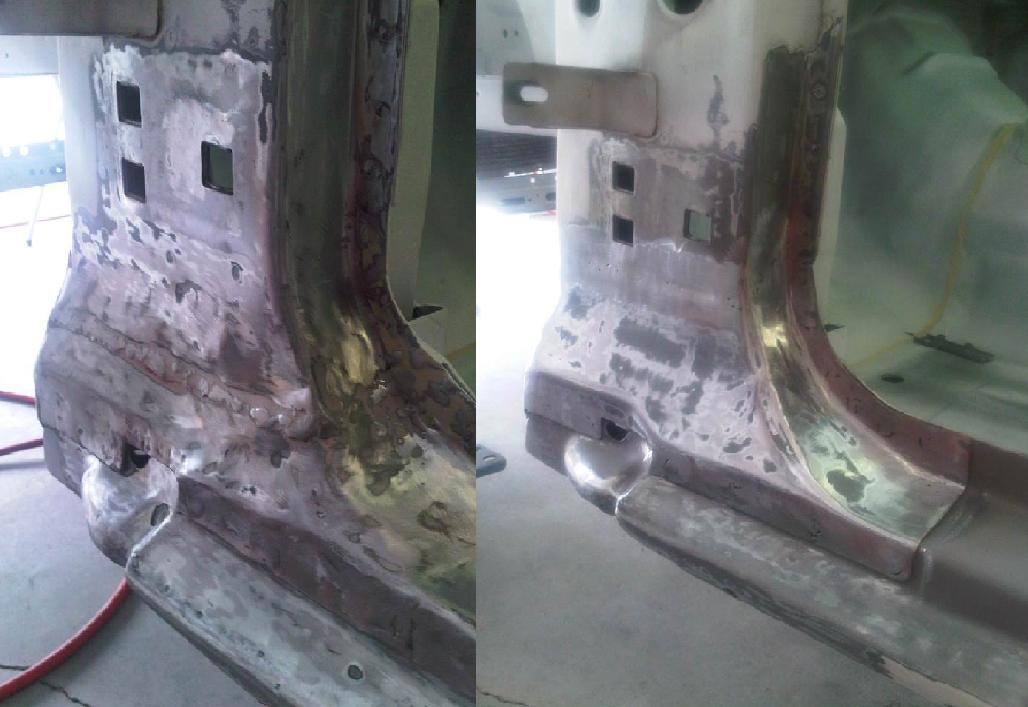

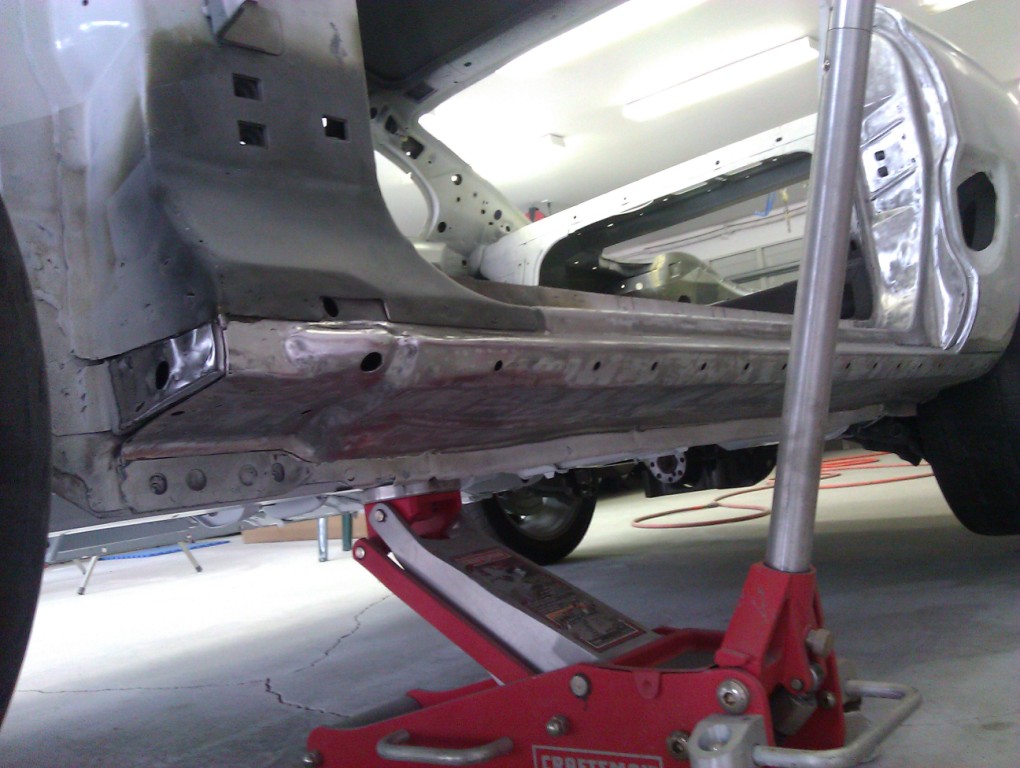

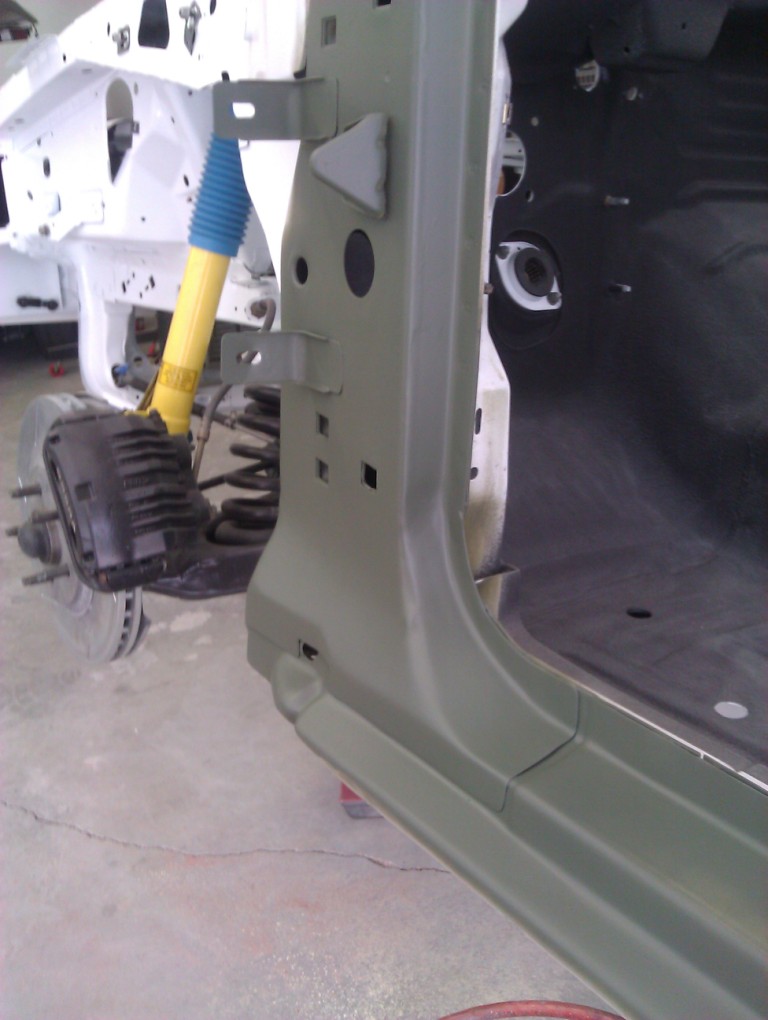

while working up here, I went ahead and finished the bodywork on the
lower a-pillar. Earlier I had replaced it with one from another car
after discovering a poor repair job and 3/4 inch of bondo. Here are the
'before & after' pictures:|

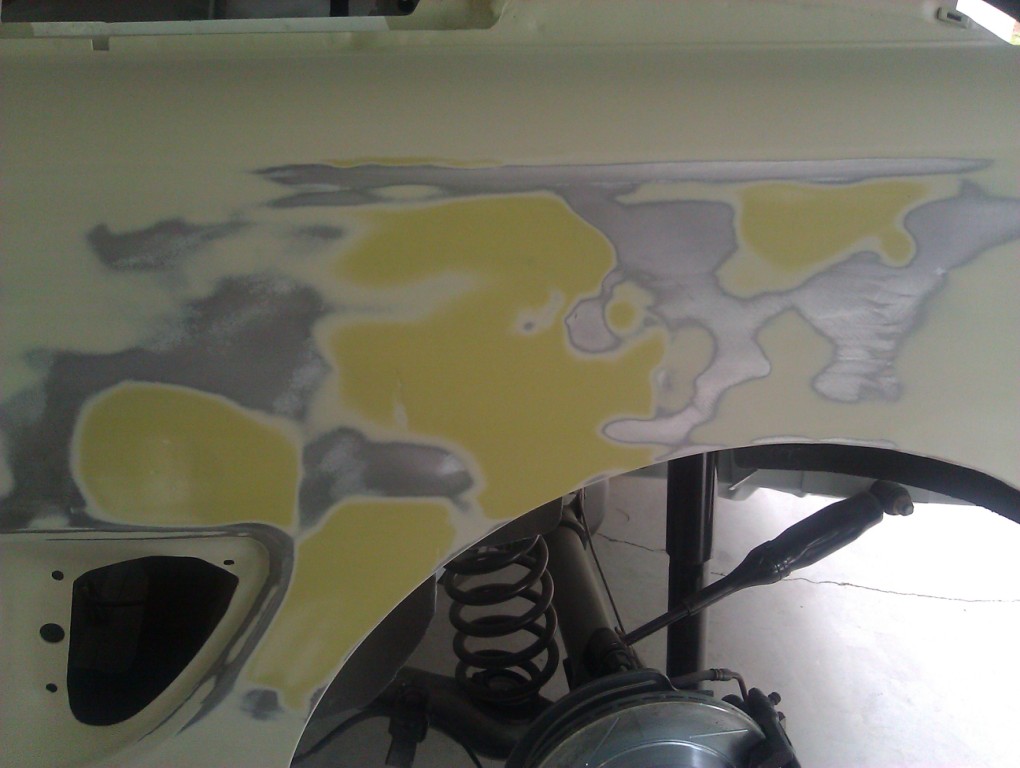

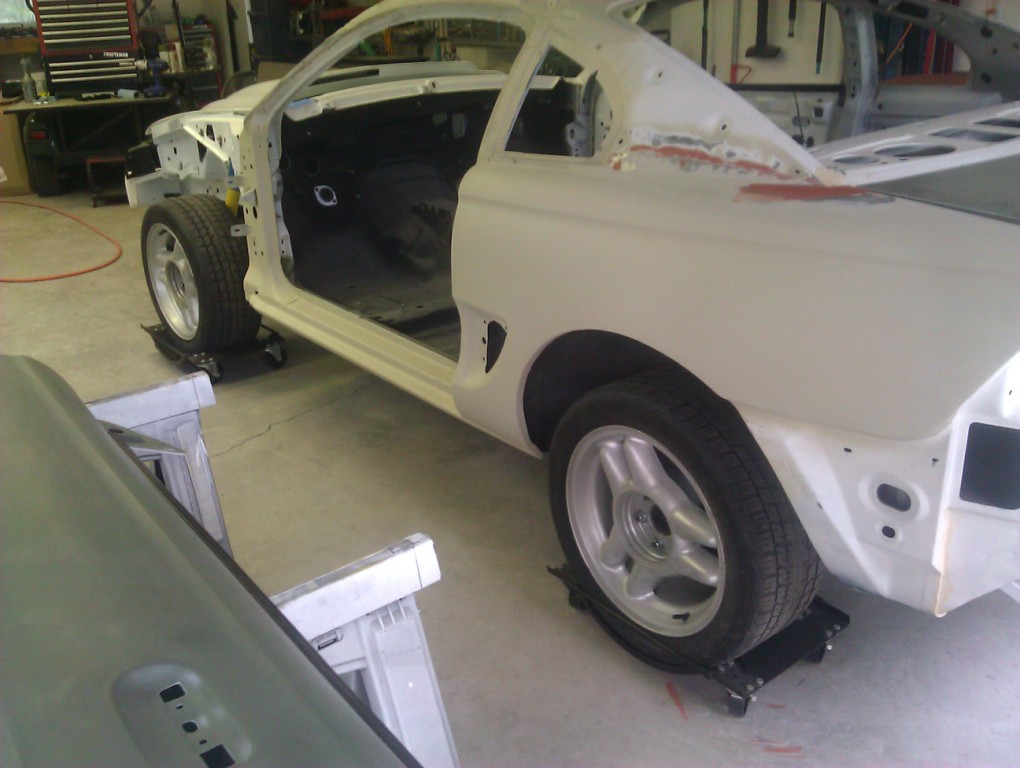

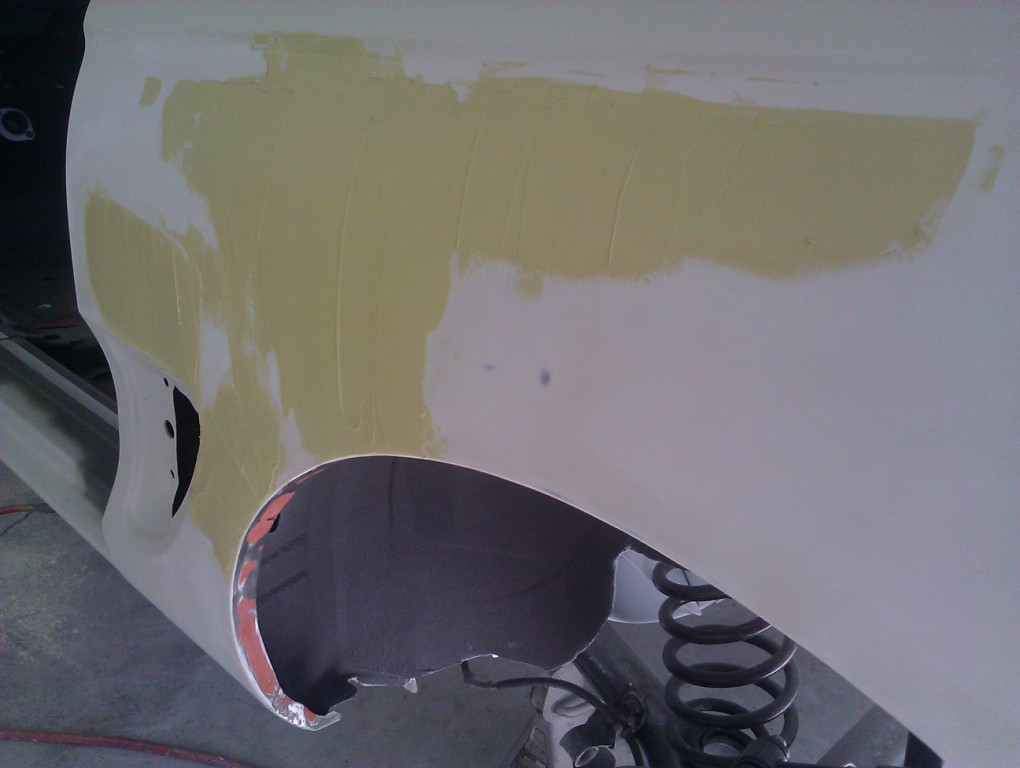

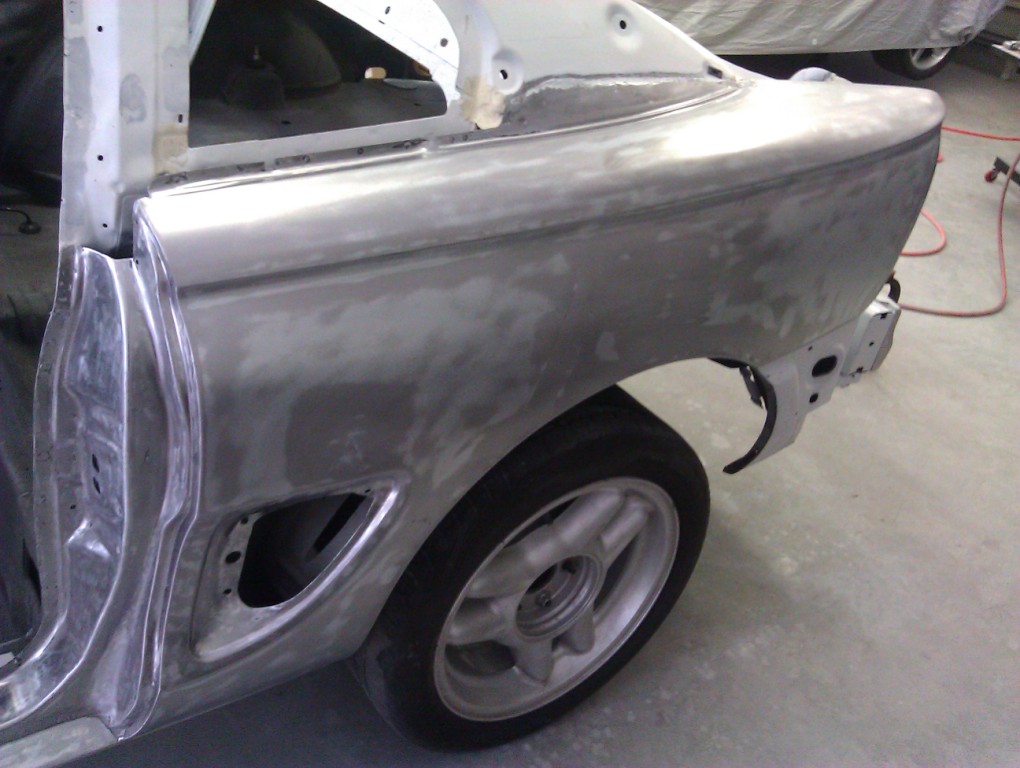

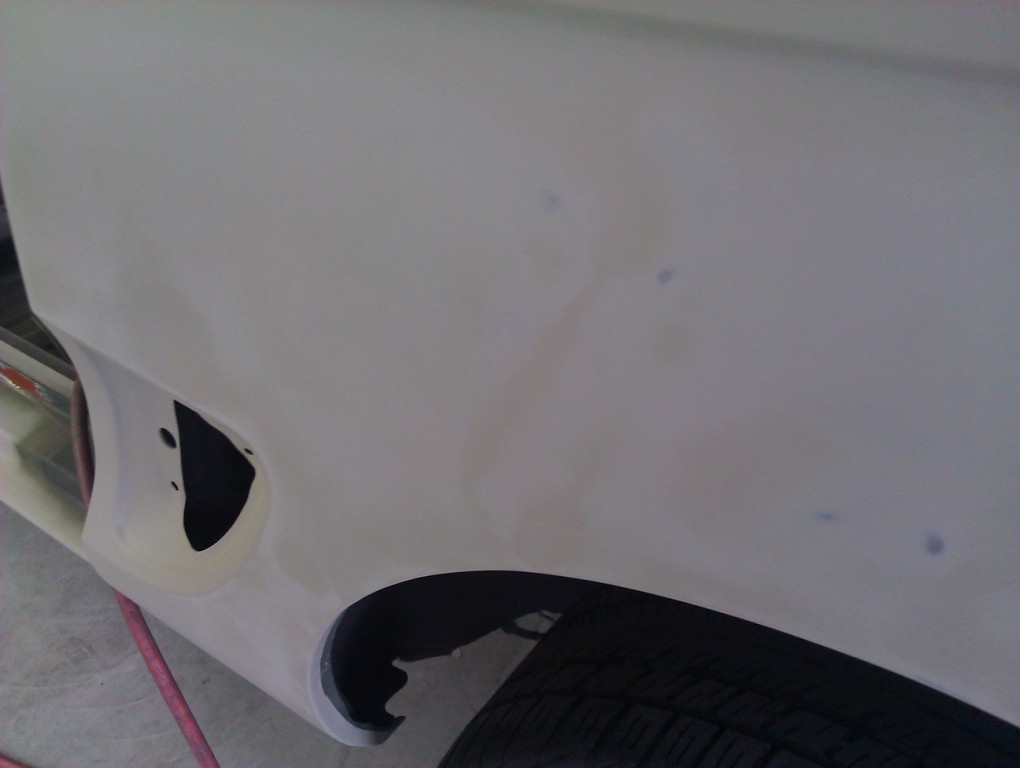

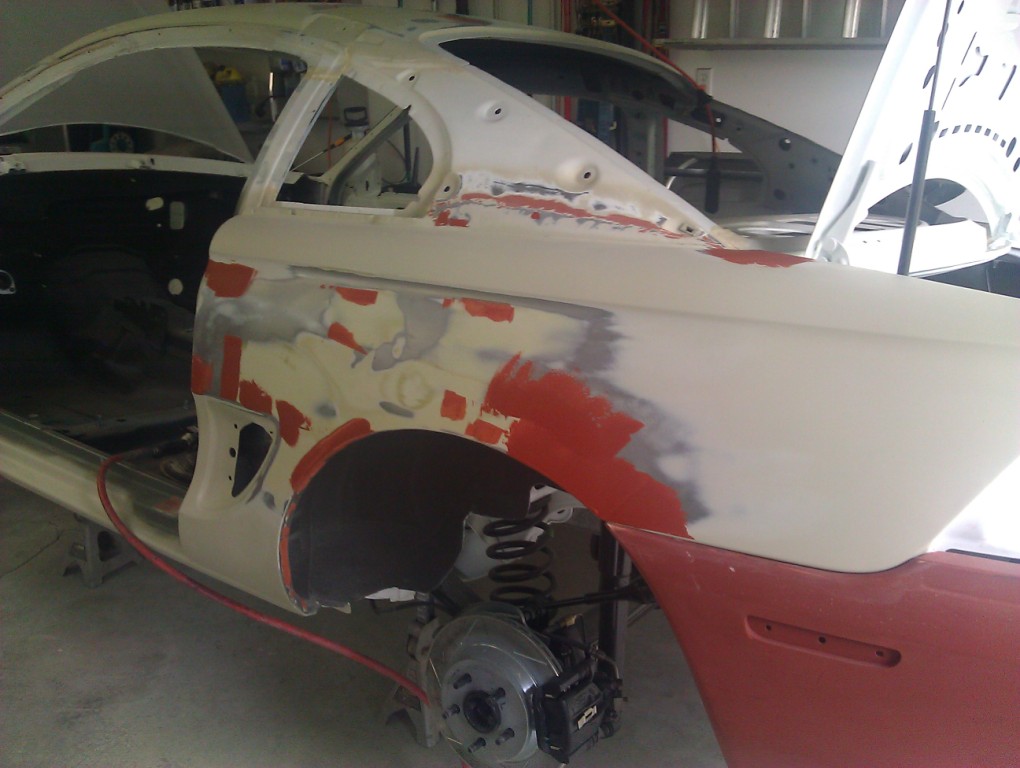

knew when I purchased the car that the drivers-side quarter panel had
had some poorly-done prior repairs. The paint was cracking in several
areas around the wheel opening. When I stripped off the paint and
layers of bondo, I had one wavy panel.|

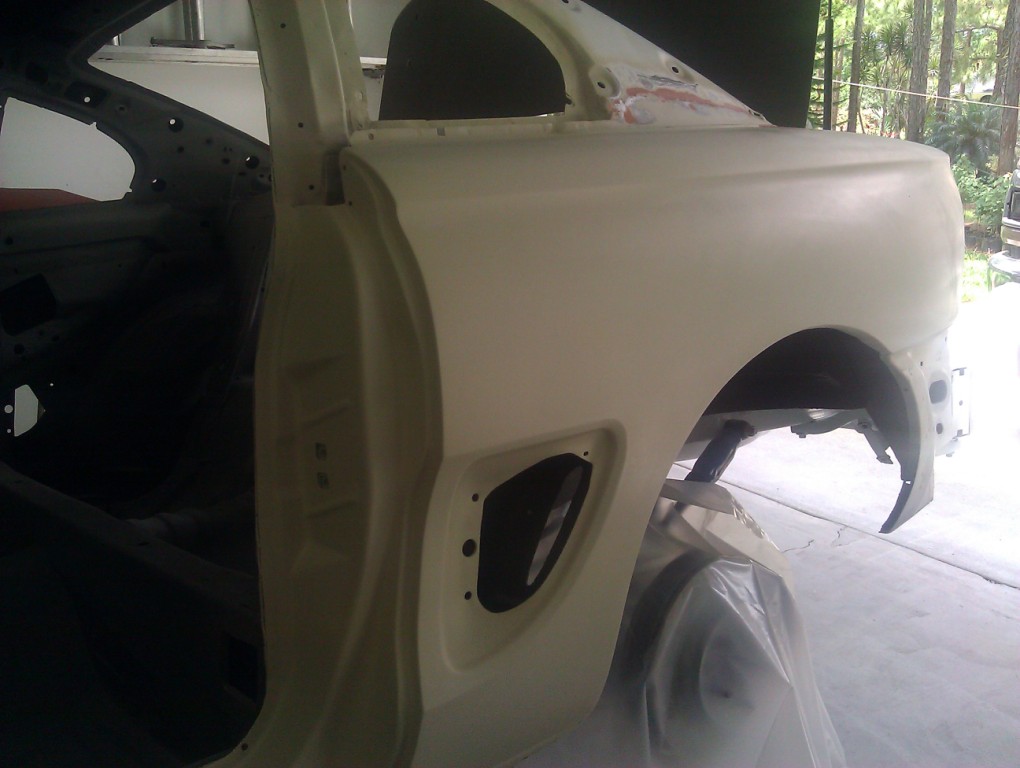

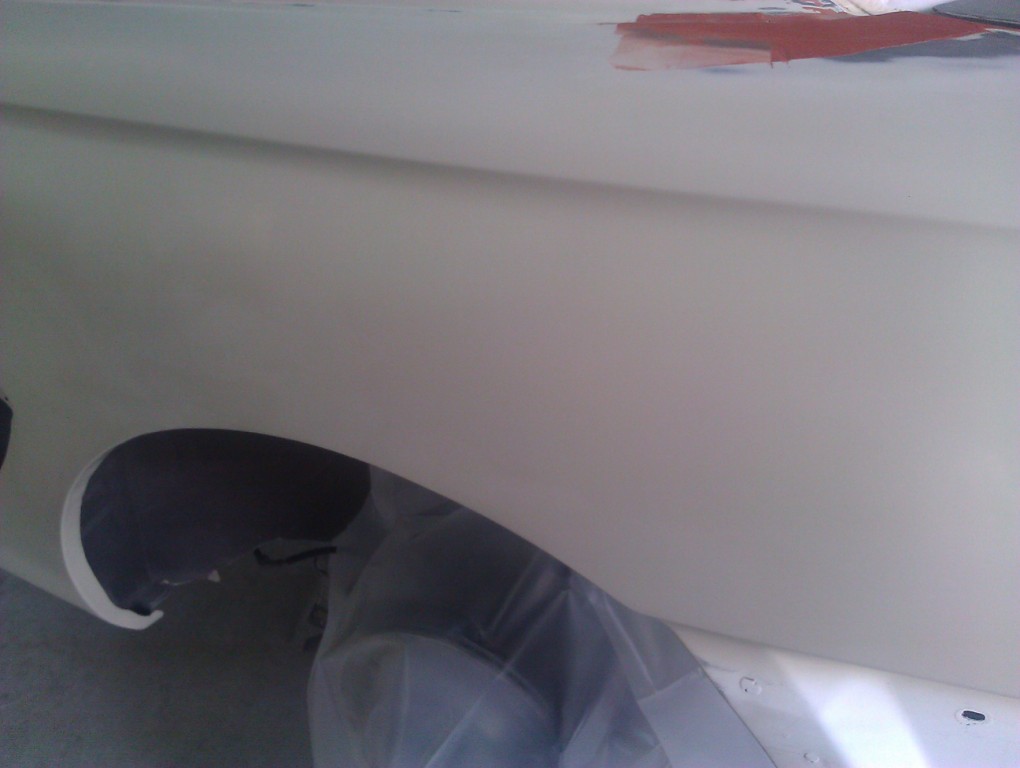

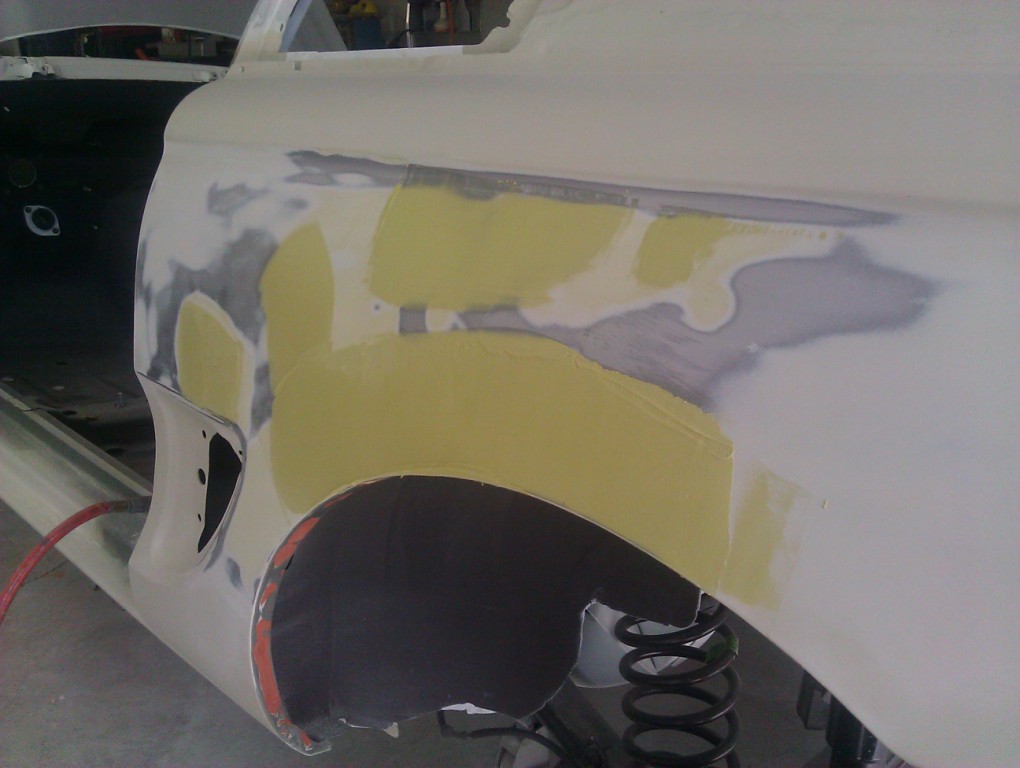

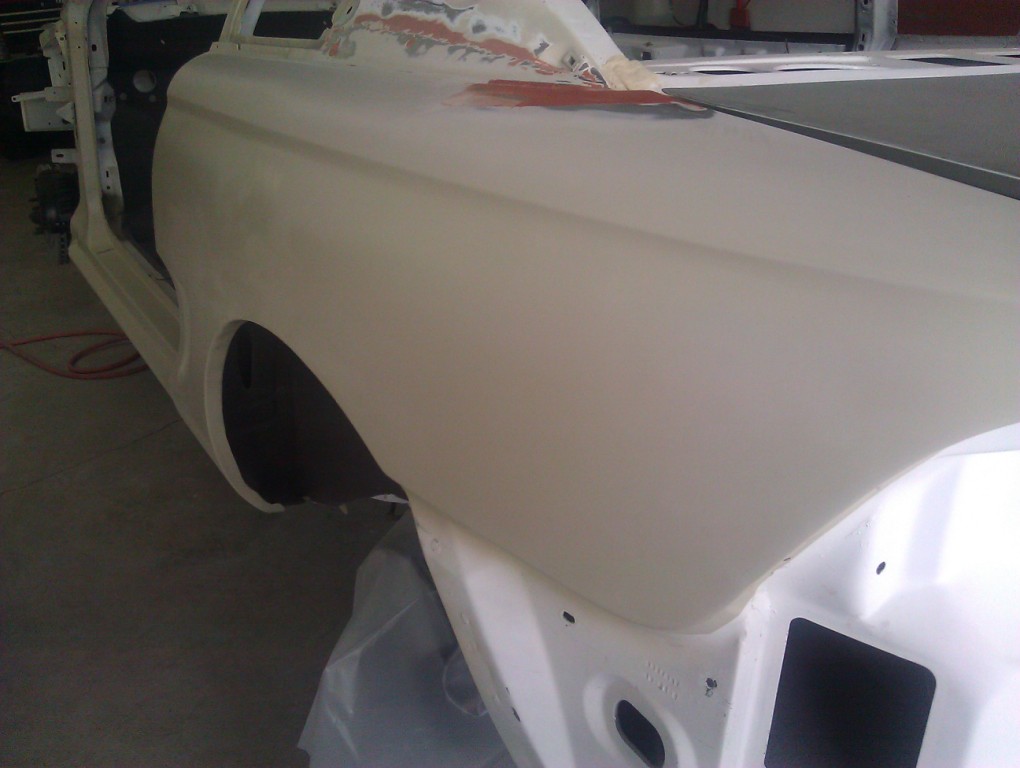

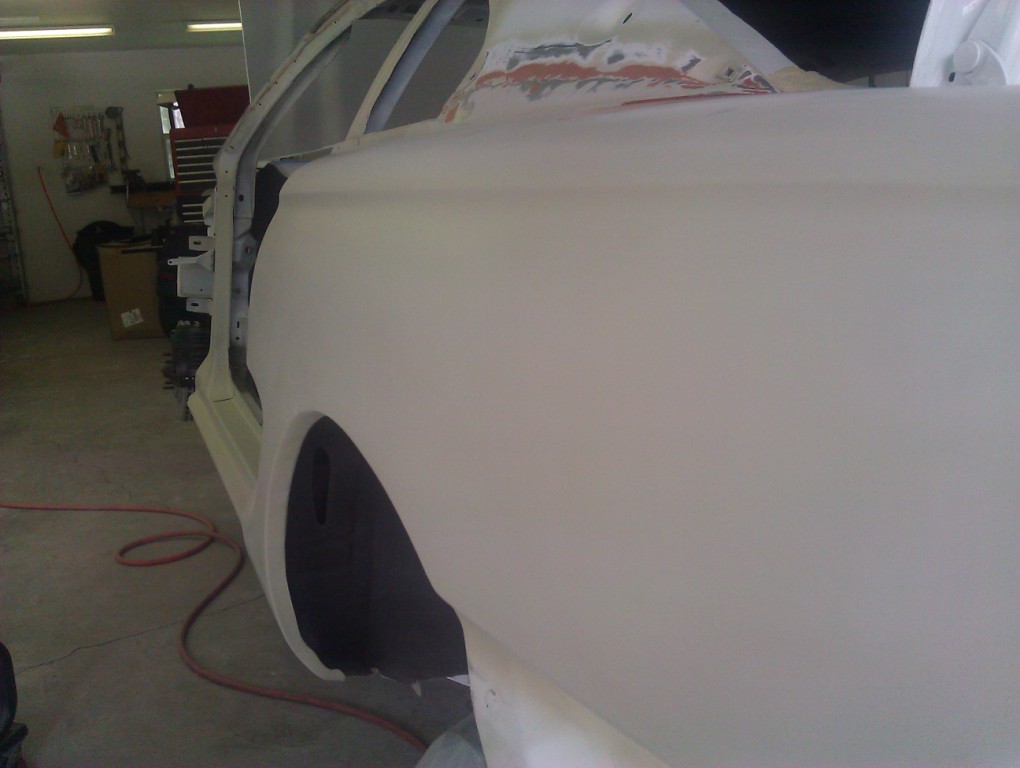

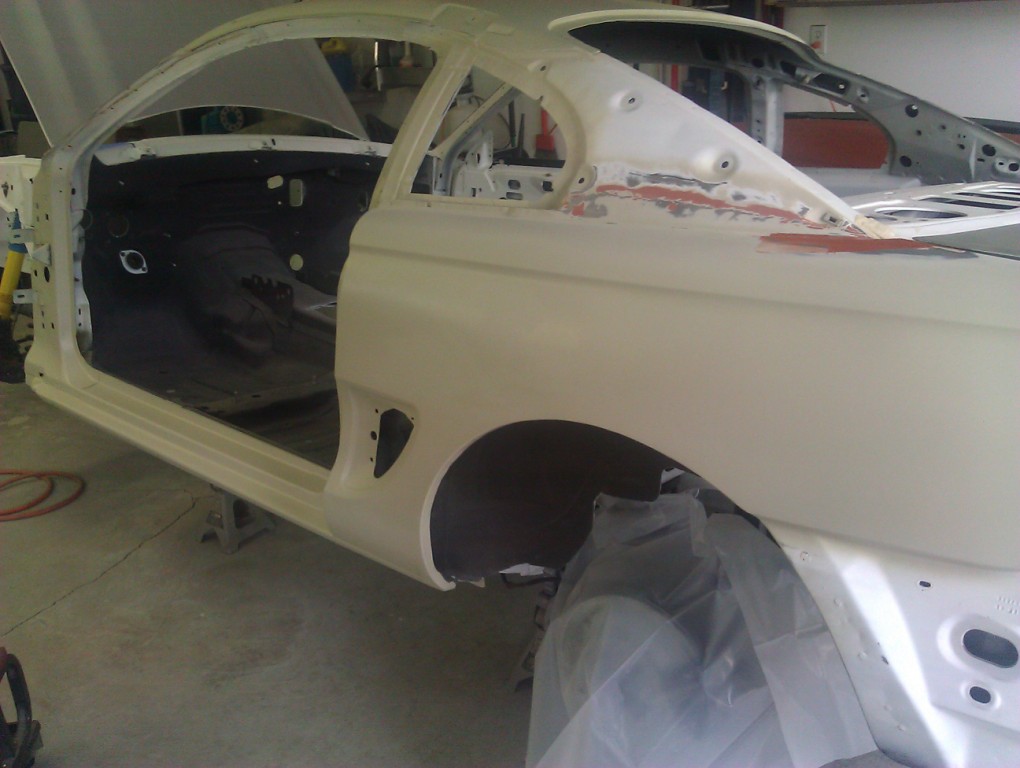

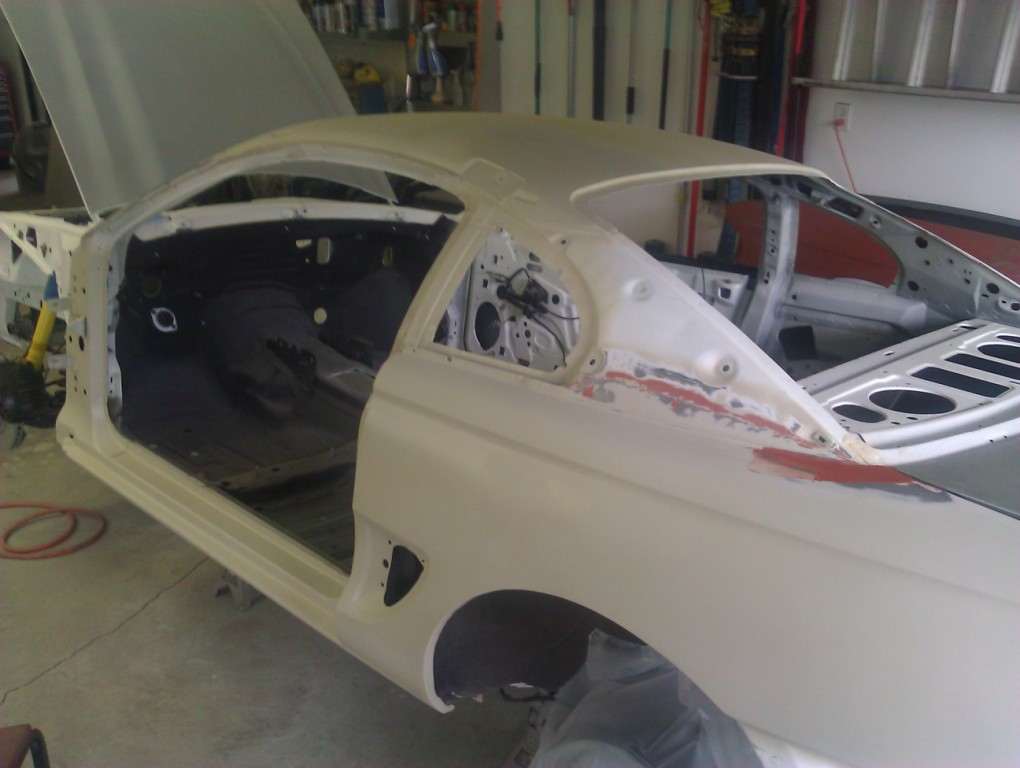

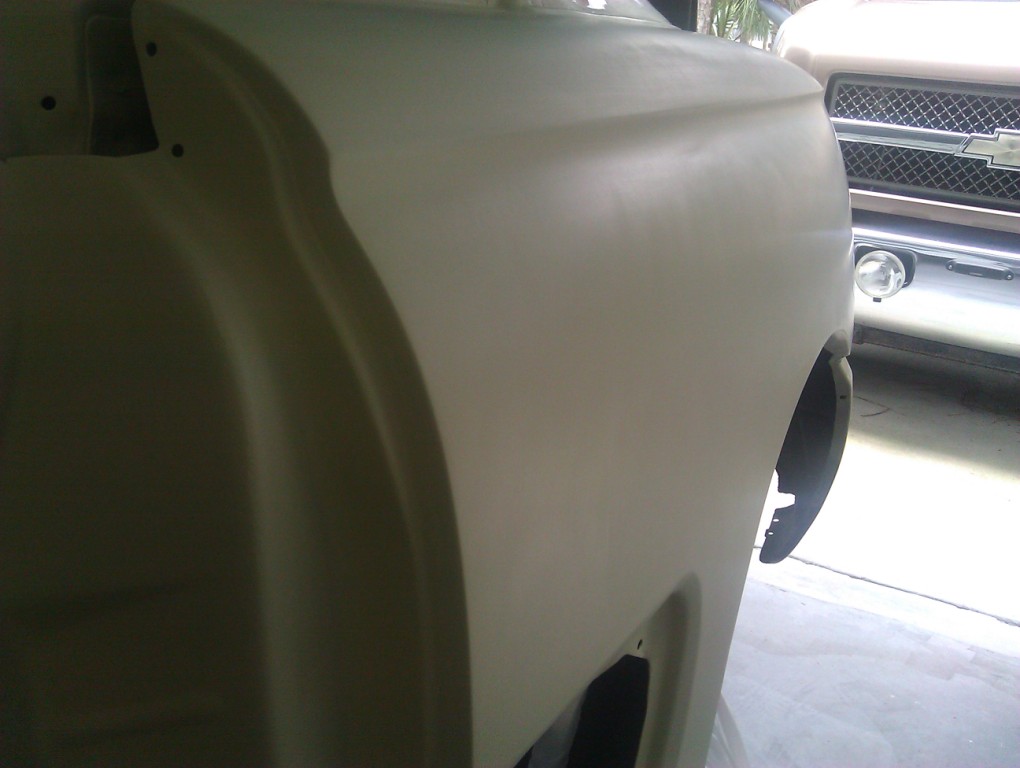

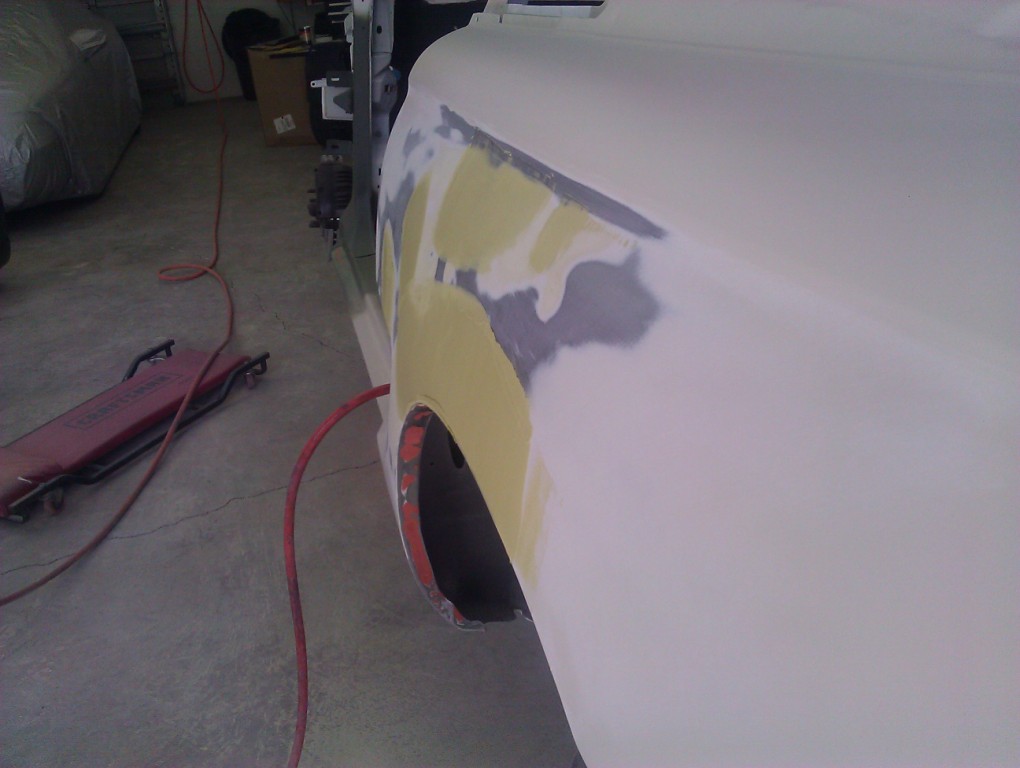

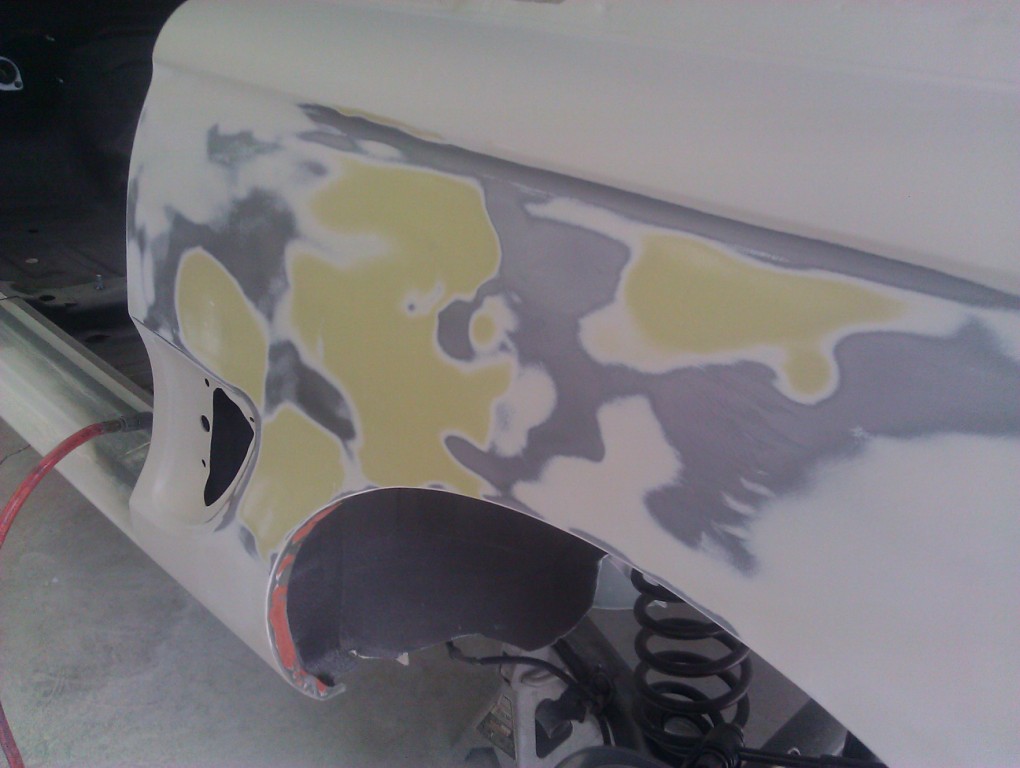

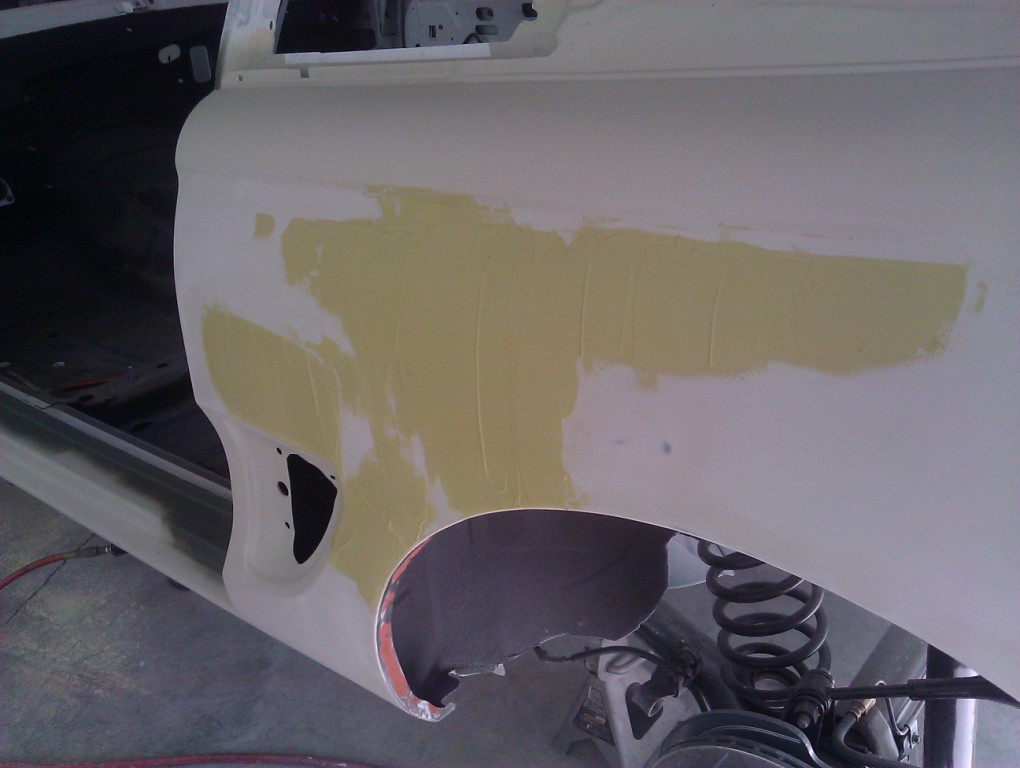

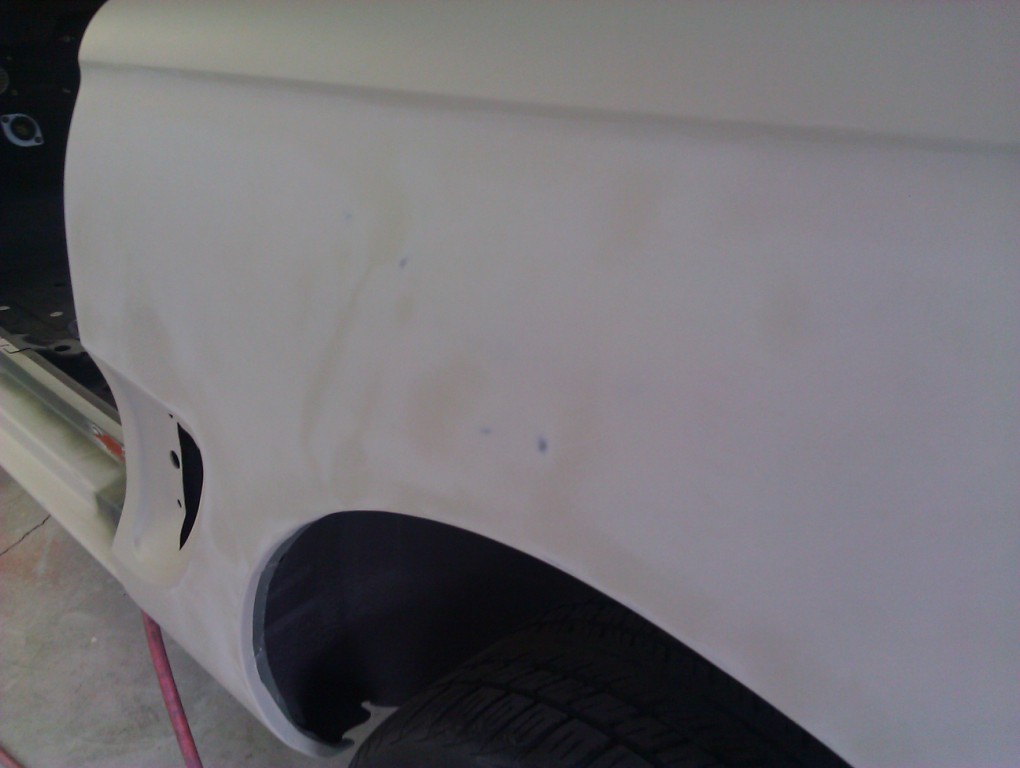

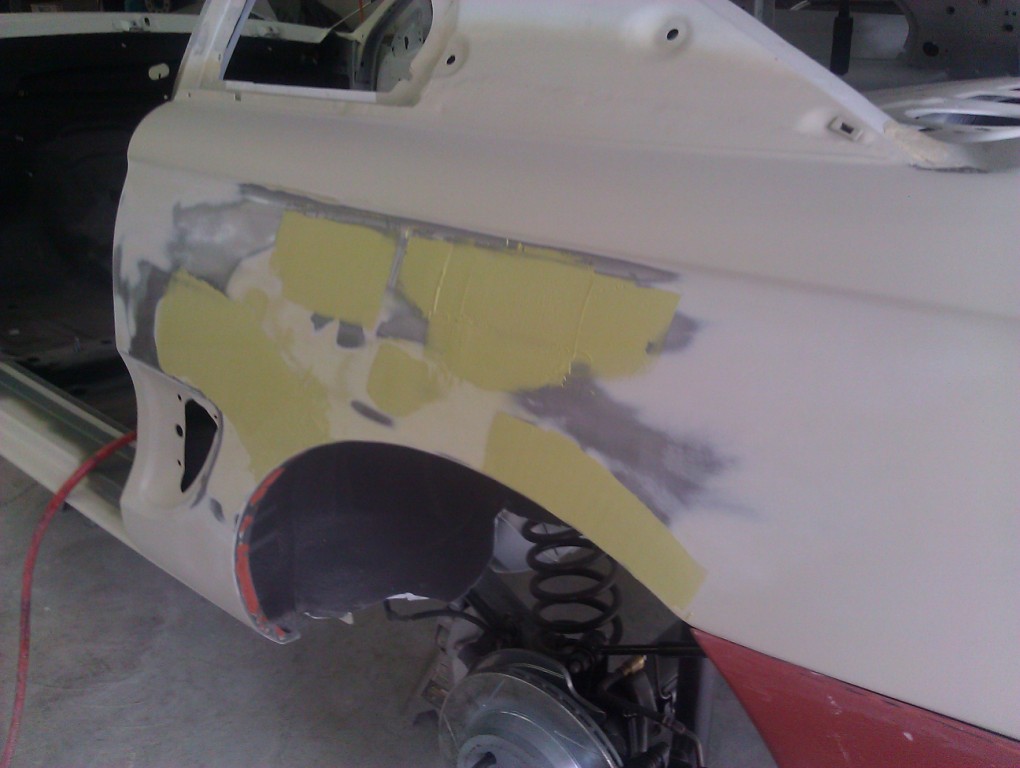

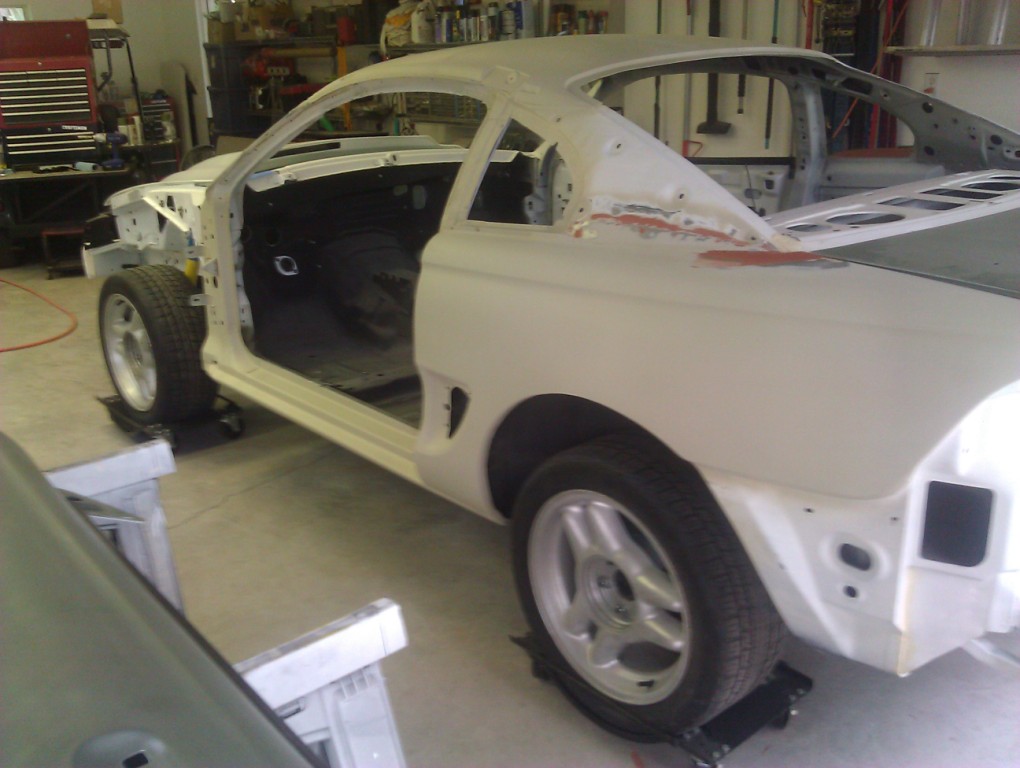

several rounds of filler, sanding & spot-putty, I put on another
coat of epoxy primer. It will still need more blocking with filler

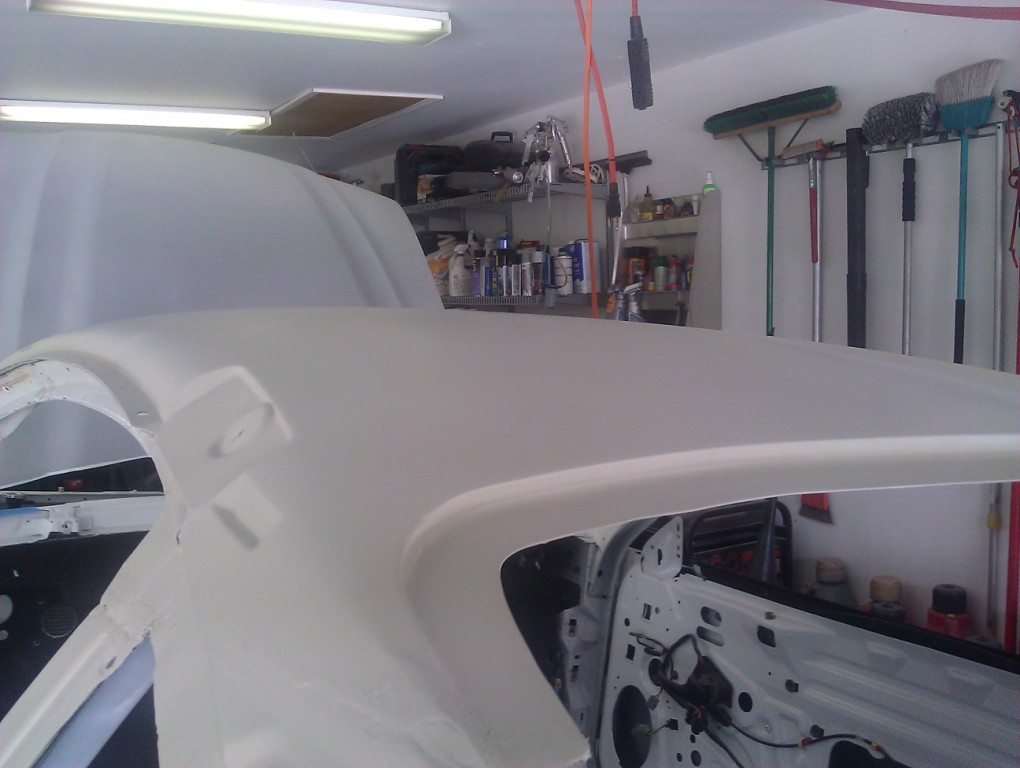

primer for a glass-smooth finish, but I'm very happy with the result. I

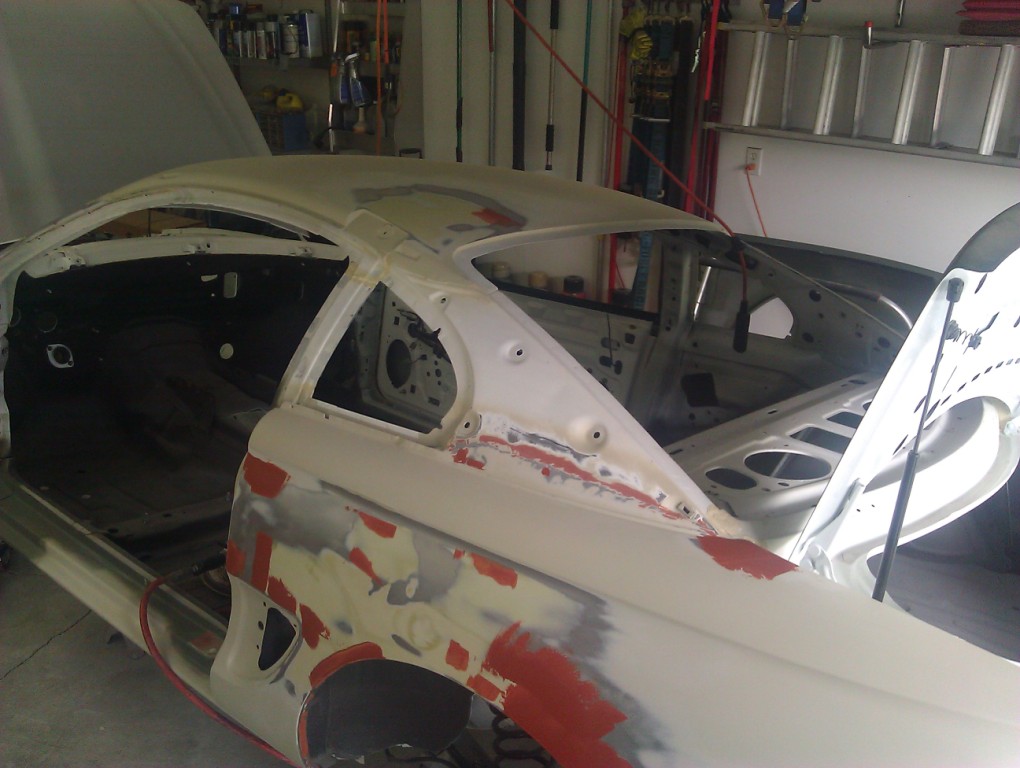

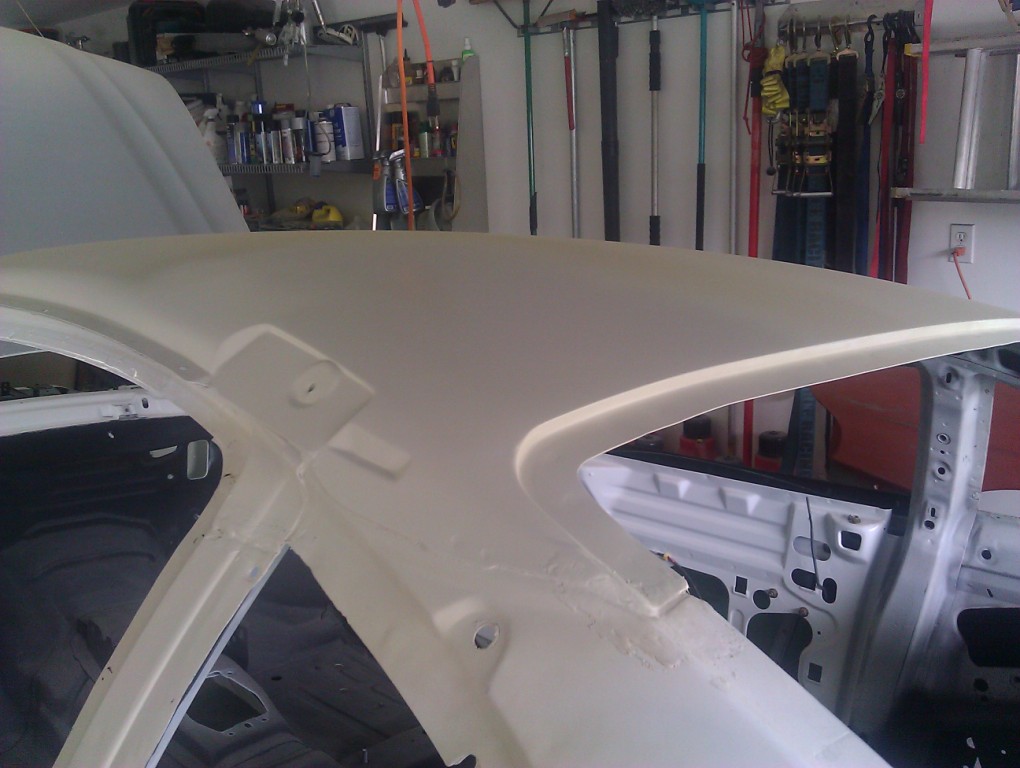

also filled in the dented roof area.|
